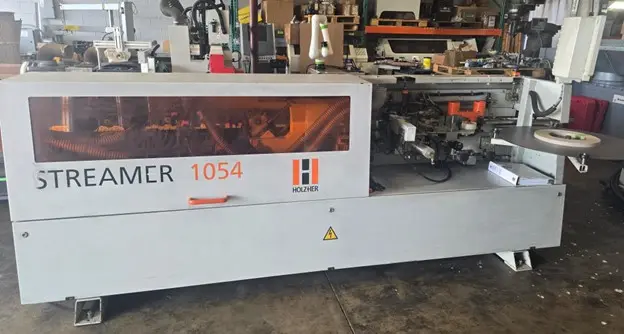

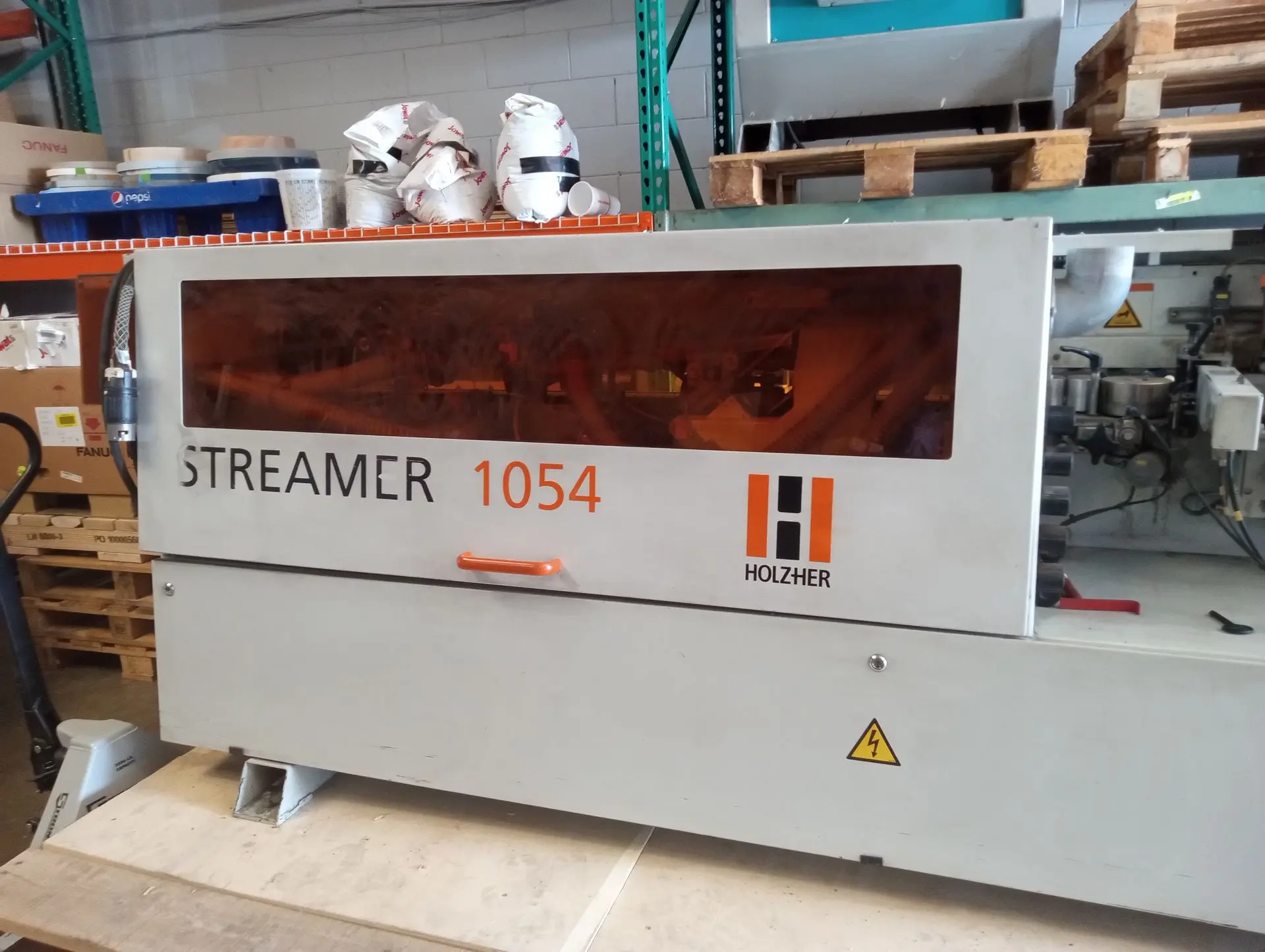

Holz-Her "Streamer 1054" Edgebander

65 mm (2.6") minimum part width

160 mm (6.3") minimum part length

8 mm (0.3") - 60 mm (2.4") part thickness

0.4 - 6 mm edgebanding thickness

32 FPM feed speed

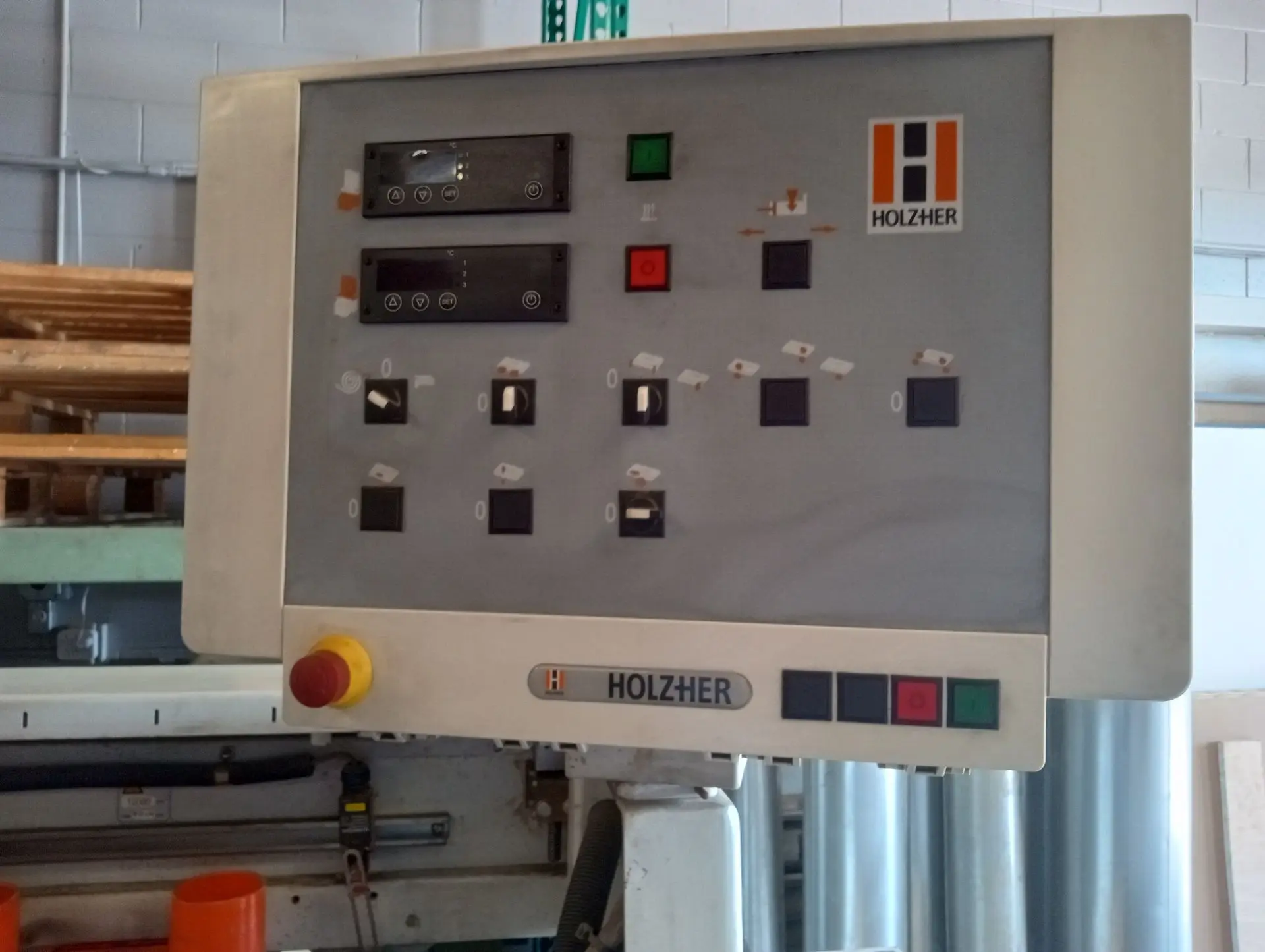

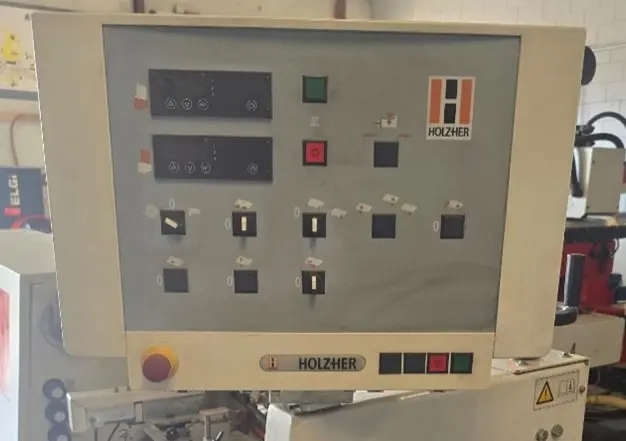

Controller

Temperature control

Working unit control

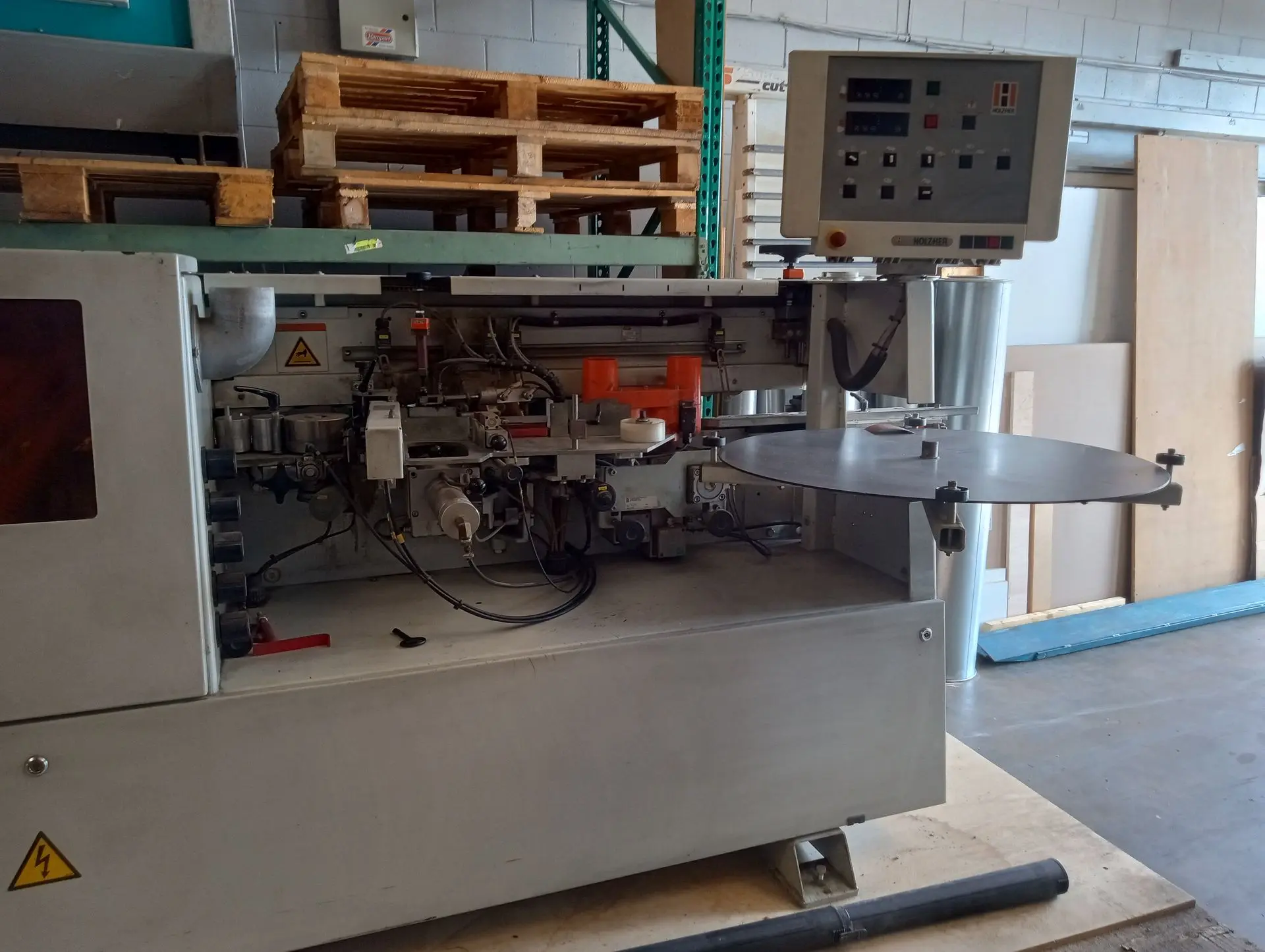

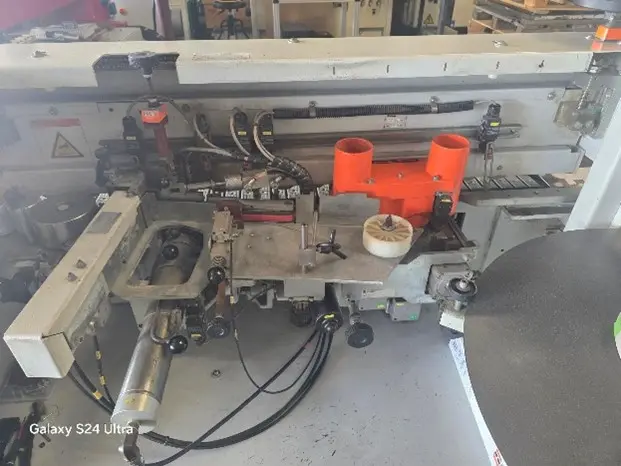

Edgebanding infeed table, 32" diameter

Lower feed track

Upper roller hold down

Adjustable infeed fence

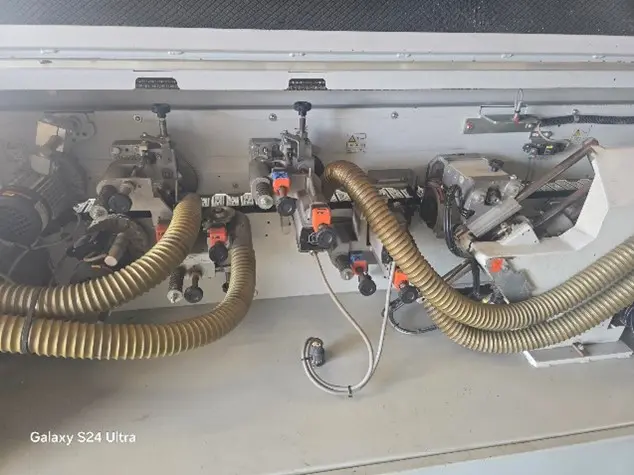

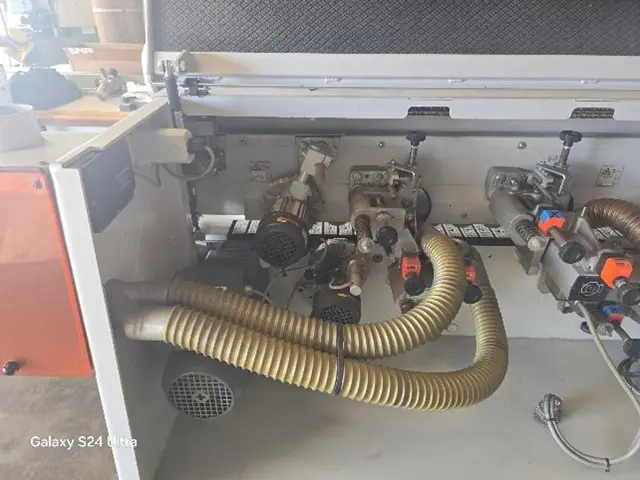

Pre-milling unit (HH hashtag#FG201)

Two (2) motors, 1 HP, 12000 RPM (each)

Guillotine for automatic cutting of coiled edgebanding up to 3 mm

Glu Jet gluing unit

Pressure unit (HH #1912)

One (1) driven roller

Two (2) idle rollers

End trimming unit (HH #1918)

Two motors, two (2) blades

0.6 HP, 12000 RPM

Manually tiltable up to 10 degrees

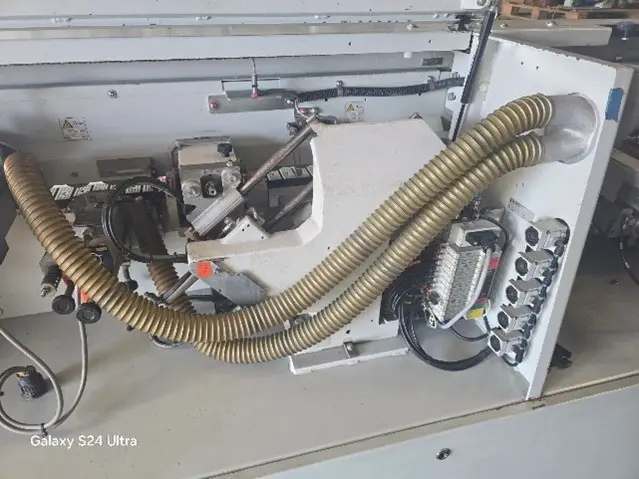

Top/bottom trimming unit (HH #1827)

0.9 HP, 12000 RPM (each)

Top/bottom scraping unit (HH #1929)

External collection box

Top/bottom buffing unit (HH #1940)

0.2 HP, 1400 RPM (each)
