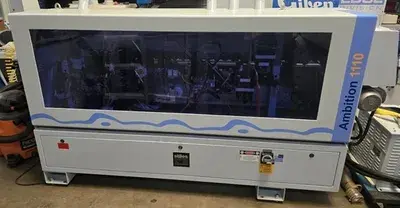

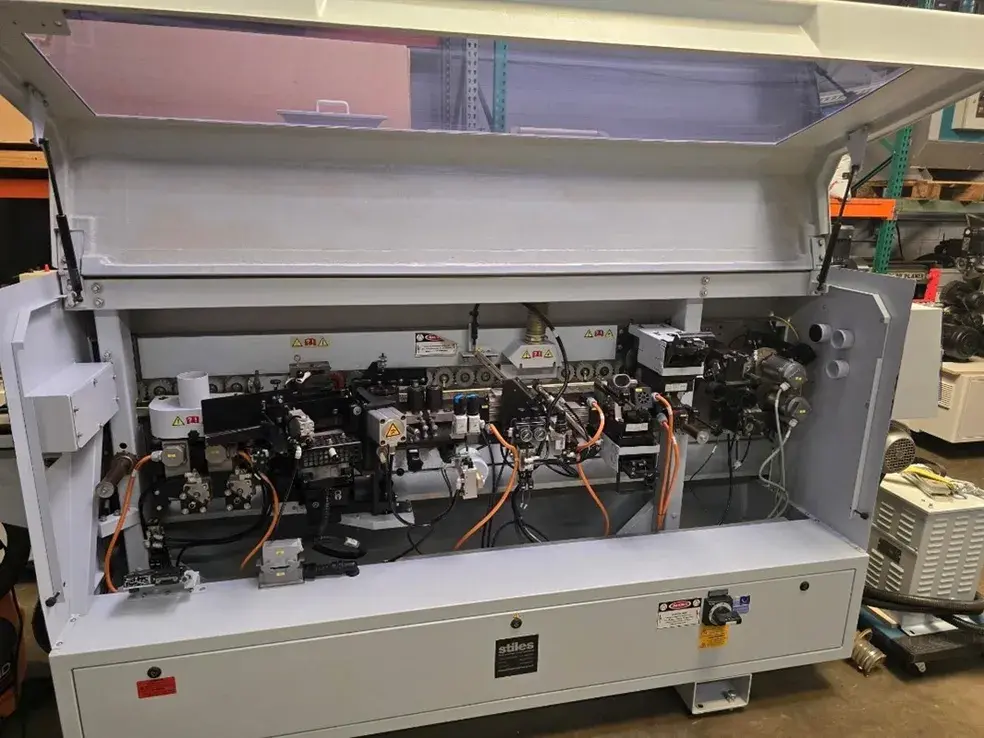

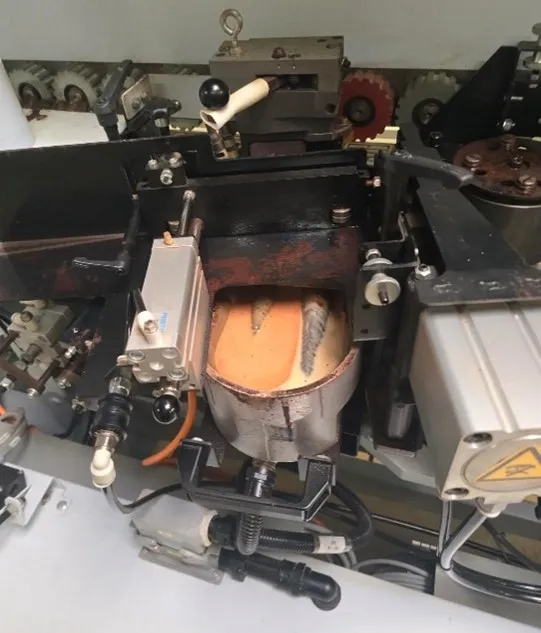

2017 Brandt KDN 110 / Ambition 1110 – Edgebander

  Technical Specifications:

· 016″ to 1/8″ maximum edgebanding thickness capacity (coil or strip)

· Edgeband length: strips 9" minimum 5/16" min. to 2" max. panel thickness

· Minimum panel length: 5-1/2" - Minimum panel width: 2-3/4"

· Edgeband height: 5/16 to 1-5/8"

· Electronic Easy Control with backlit LCD display

· Automatic temperature reduction feature (lowers the glue temperature if no panel is run over a 15 minute span)

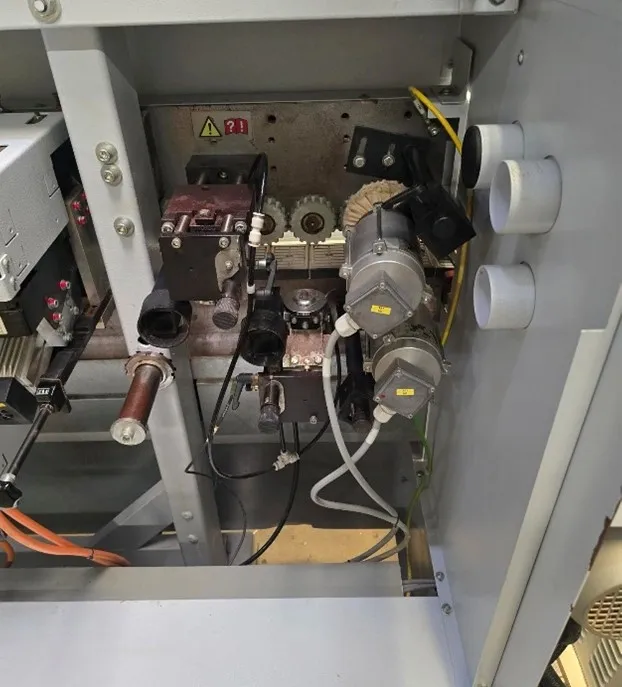

· 1/4 HP 12 000 RPM double motor end trim .33 HP

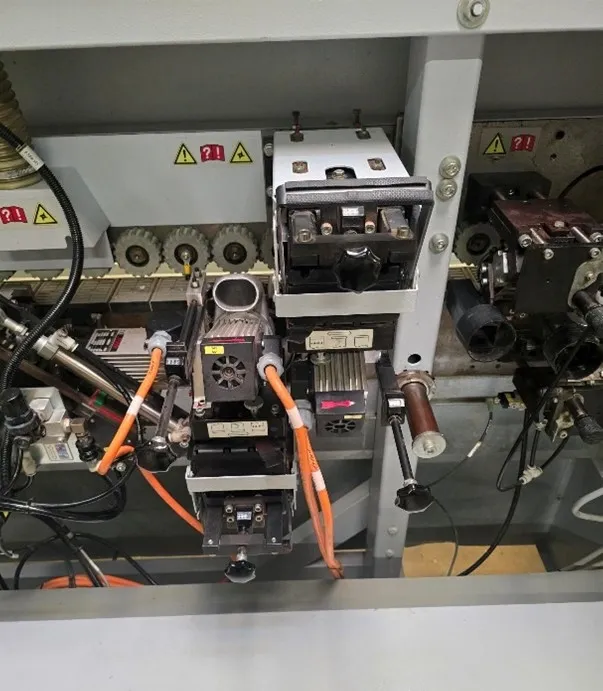

· 12 000 RPM top and bottom trim station equipped with two DFC combination straight/radius cutter heads and digital readouts (three different working positions: flush trim trimming with overhang and radius/bevel trimming)

· Top and bottom profile quick change scraping unit

· Finish scraping unit 3/4 HP 1-speed feed with speed of 26 FPM

· Dust extraction: (3) 80 mm outlets and (1) 100 mm outlet 1600 CFM required

· Compressed air connection: 6 bar (85 psi) Isolation transformer with variable infeed voltage for balancing all 3 phases of incoming power

· Machine Weight: 1 650 lbs.

· Machine dimensions: 12'1" long x 4' wide

· Amperage required @ 230 volt: 30 amps



Priced at $ 22,900.00 FOB Winter Park, FL
