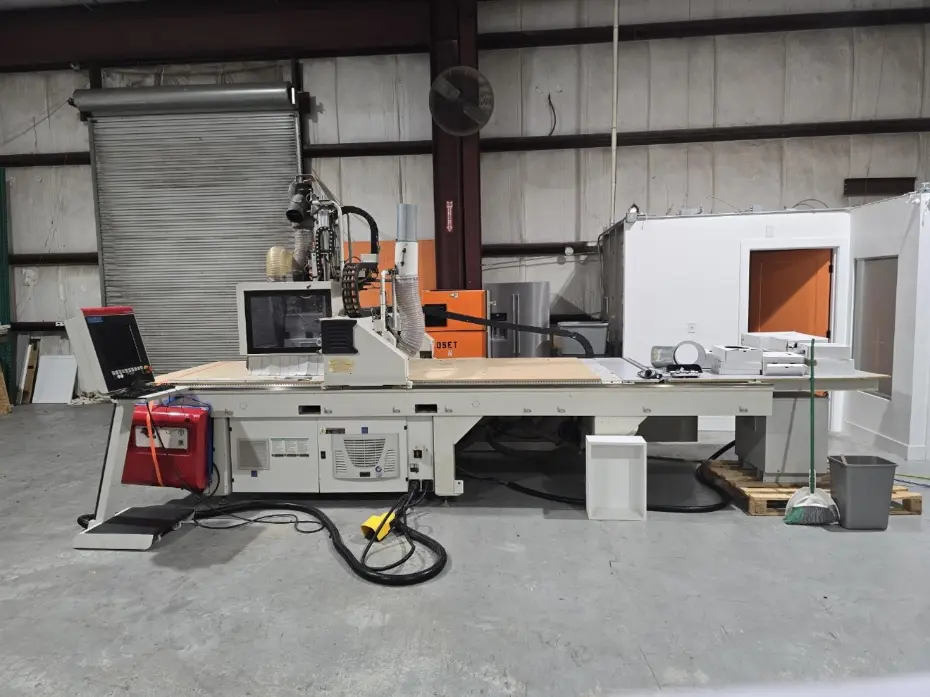

2020 Giben G4 EVO 510 CNC







Priced at $79,500.00 FOB Orlando, Florida

General Machine Specifications

Model: G4 EVO 510 (G4 EVO series 5x10)

Type: 3-axis CNC router (production / nested machining)

Table & Travel

• Table (work area): ~ 3100 × 1600 mm (approx. 5′ × 10′)
• Travel: ≈ X ~ 3100–3300 mm, Y ~ 1600–1950 mm, Z ~ ~250 mm (varies by configuration & source)

Drive & Motion

• Max Traverse Speed (X/Y): ~ 80 m/min
• Max Z Speed: ~ 30 m/min
• Drive System: Precision rack & pinion on X/Y, ball screws on Z, digital servo motors on all axes
• Automatic lubrication system for motion components

Spindle & Tooling

• Main Spindle: ~ 18 hp (≈ 13 kW) electrospindle
• Spindle Speed: up to ~ 24 000 rpm
• Tool Changer: 8-position ride-along (some units optional 12)
• Tool offsets: up to ~ 200 (depending on controller/software)
• Automatic tool touch-off/probing

Boring / Drills (Optional/Config-Dependent)

• Vertical drills: multiple independent vertical spindles
• Boring unit power: often ~ 2 hp each spindle
• Boring speeds up to ~ 6000 rpm (varies by tooling package)

Table & Clamping

• Vacuum table: high-flow matrix grid with multiple M-code controlled vacuum zones
• Clamping: side clamps + pneumatic pop-up locators
• Vacuum pump: commonly ~ 9 hp Becker type (one or optional additional)

Controller & Software

• Control: PC-based CNC control Windows-based panel
• Interface: flat panel display, keyboard, MPG handwheel, network/USB connectivity
• Software: typically supports full program editing, nested machining control, macros, etc.

Physical & Other

• Approx. Weight: depends on configuration — roughly around ~ 5000 kg+ (varies widely by add-ons)
• Power: multi-voltage (typically 3-phase industrial electrical)
• Dust extraction ports: dual ~ 200 mm diameter
• Optional features: auto load/unload systems, off-load tables, advanced tool presets, label printing
