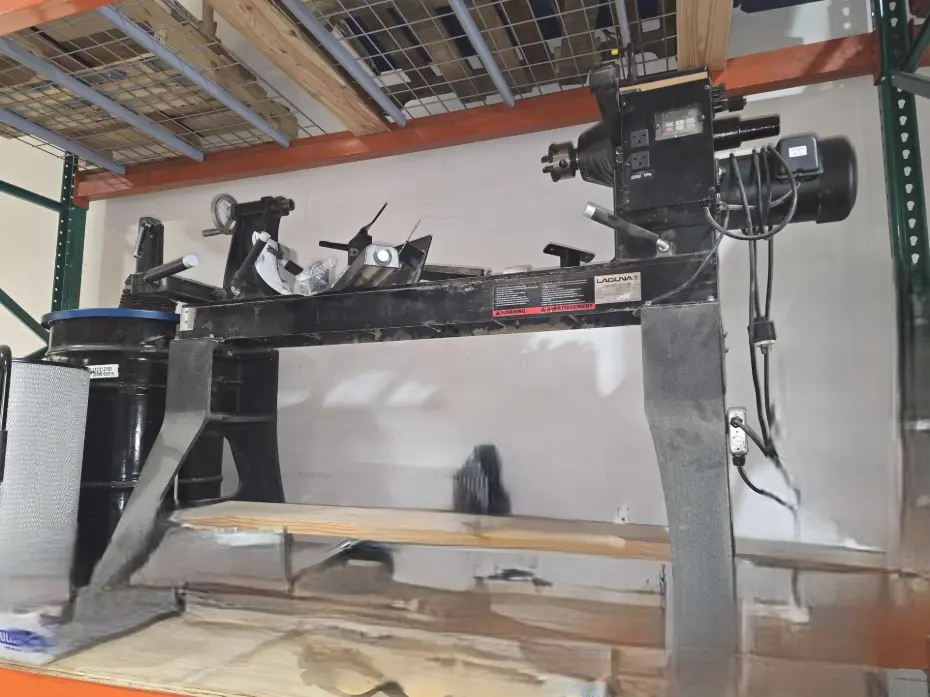

LAGUNA REVO 24-36 Lathe
About This Product
On the Laguna 24|36 Lathe, it features solid good looks and quality craftsmanship. The First feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe. With a bed made from steel it allows the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well known longevity & strength. Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings you will get an incredible amount of torque. The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle. The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your work flow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.
Features:
- Heavy-duty woodturning performance
- Smooth and precise operation
- Cast iron bed, headstock, and tailstock for maximum stability and vibration control
- Forward and reverse function for complete turning flexibility
- Digital speed readout for easy and accurate adjustments
- Ergonomic control panel positioned for comfort and visibility
- Steel bed ways for strength and durability under load
- Tailstock and headstock lock firmly for secure turning
- Modern design with industrial-grade components for long-term reliability
Specifications:
- Phase: 1-Phase Input, 3-Phase Output
- Recommended Breaker Size: 15 Amp
- VFD: Delta S1 Variable Frequency Drive
- Tailstock Quill: 4½”, Engraved, Self-Ejecting
- Floor to Spindle Center: 44½”
- Front Bearing: TPI Taiwan 6307LLU
- Rear Bearing: TPI Taiwan 6205LLU
- Spindle Index#: 14/36/48 w/Lock
- Distance Between Centers: 36″
- Headstock Through-Bore: ⅜”
- Headstock Travel: Full Length
- Tailstock Through-Bore: ⅜”
- Tailstock Storage of Centers
- Spindle Size: 1¼” X 8 TPI RH
- Floor to Bed: 32½” with Pads
- Spring Loaded Spindle Lock
- Max. Outboard Swing: 38″
- Swing over Banjo: 19¾”
- Face Plate: 3″ Diameter
- Tool Rest: 12″
- Steel Bed: ASTM A36
- Headstock Spindle: MT2 taper hardened to 40° HRC
- Tailstock Quill: MT2 taper hardened to 40° HRC
- Swing Over Bed: 24″
- RPM: High: 135-3500 Low: 50-1300
- Dimensions: 60″ W x 26″ D x 52¼” H
- Weight for 220V (Ship): 610 Lbs
Machine Price $2550.00
