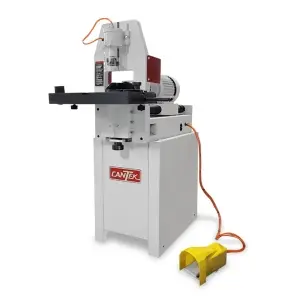

CANTEK | BM301 HORIZONTAL BORING MACHINE

  • Automatic pneumatic drilling cycle actuated by convenient foot pedal
  • Pneumatic clamp holds material firmly in place during drilling cycle
  • Adjustable drilling bit center to center spacing from: 71”~3.93” centers (18~100mm)
  • Industrial cast iron drilling assembly & table, with fabricated steel base

Learn more

Design featuresSpecification

Specifications

INCH
METRIC
Number of drills
2 spindles
Adjustable drill spacing
0.71”~3.93” centers
18~100mm centers
Maximum drill stroke
4”
100mm
Drill bit shank
7/16”-14 Threaded Shank (Both Right Hand Only)
Table size
15.75” x 10”
400 x 250mm
Motor
2HP (230/3/60 = 6.3 amps)
Spindle speed
3450 RPM

Design features

  • Cast iron worktable with miter gauge for angled holes
  • Worktable is conveniently adjusted up & down for varying workpiece thicknesses by an adjustment knob and threaded rod
  • Adjustable drilling depth with maximum stroke of 4” (100mm)
  • Drilling speed can be conveniently adjusted by a speed adjustment knob.
  • Powerful 2HP direct drive motor for effortless drilling
