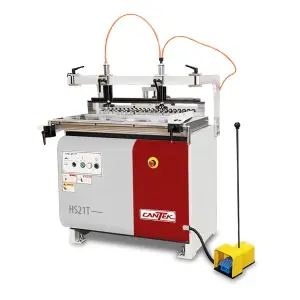

CANTEK | HS21T 21-SPINDLE CONSTRUCTION BORING MACHINE

  • Single line boring machine with 21 spindles (11 RH & 10 LH) at 32mm centers
  • Tiltable boring unit can be changed from horizontal to vertical drilling by pneumatic setting
  • Pneumatic drilling cycle by convenient foot pedal
  • Quick 6-position boring depth selector for fast changeover
  • 21 quick change chuck for fast changeover

Learn more

SpecificationsDesign features

Specifications

Distance between center
32mm
Number of spindles
21
Max. drilling depth
3” (75mm)
Boring head adjustment
0°~90°
Table size
34.33” x 19.3″ (872 x 490mm)
Spindle speed
2800 RPM
Motor
2.5HP
Electrics
230/3/60= 9 Full Load Amps
230/1/60 = 16.9 Full Load Amps
Machine weight
770 lbs (350kgs)
Shipping weight
946 lbs (430kgs)
Machine dimensions
38.11”x32 ¼” x 48” (968x820x1220mm)
Shipping dimensions
45”x35”x54” (1143x889x1372mm)

Design features

  • Boring unit can be tilted manually for angular drilling
  • Adjustable drill feed speed
  • Mechanical digital readouts are provided for precise setting of the boring head
  • Two-fold away side fences for end boring or drilling smaller components
  • Side fences provides convenient positioning of the workpiece using a linear scale for positioning
  • 3-meter back fence with 4 adjustable stops for line boring or they can be set on the side fence for dowel drilling on the face of the gable
