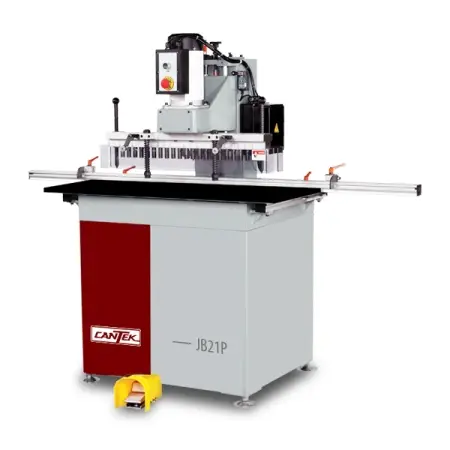

CANTEK | JB21P LINE BORING MACHINE

  • 21-spindles driven by powerful 2HP motor
  • Pneumatic boring head stroke
  • Convenient foot pedal control allows the operator to quickly adjust to the next drilling operation
  • Boring head moves up and down on high carbon, anti-friction steel shafts with linear bearings
  • 74 ¾” back fence with (2) flip stops and (2) depth adjustment stops for precise and fast setting

SpecificationsDesign features

Specifications

Number of drilling spindles
21 (10 LH & 11 RH)
Motor
2 HP
Distance between spindles
32mm
Spindle chuck
10mm
Table size
43 5/16″ x 15 ¾”
Table height from floor
33 3/8″
Max. depth of stroke
3 3/8″ (85mm)
Max. boring depth from edge
8″
Back fence
74 ¾”
Back fence stops
2 pcs
Cross fence stops
2 pcs
Air requirement
70 PSI
Electrics
230/1/60= 12 Full Load Amps
Machine dimensions
75″ x 30 ¾” x 58 ¼”
Net weight
375 lbs.
Shipping dimensions
43.3″ x 33″ x 69.3″
Shipping weight
506 lbs.

Design features

  • 21-spindles driven by steel gears
  • See through PVC guard to cover boring units for added safety
  • Spring loaded part hold down
  • Back fence & cross fence with scale position indicator
  • (2) flip stops on back fence
  • Precision mechanical digital readout for desired boring depth
  • Precision slide bushing linear bearings for boring head stroke
