SCM class si 400ep

$47,152.63

15% Clearance Discount

$40,079.74

(Price does not include taxes, shipping and installation)

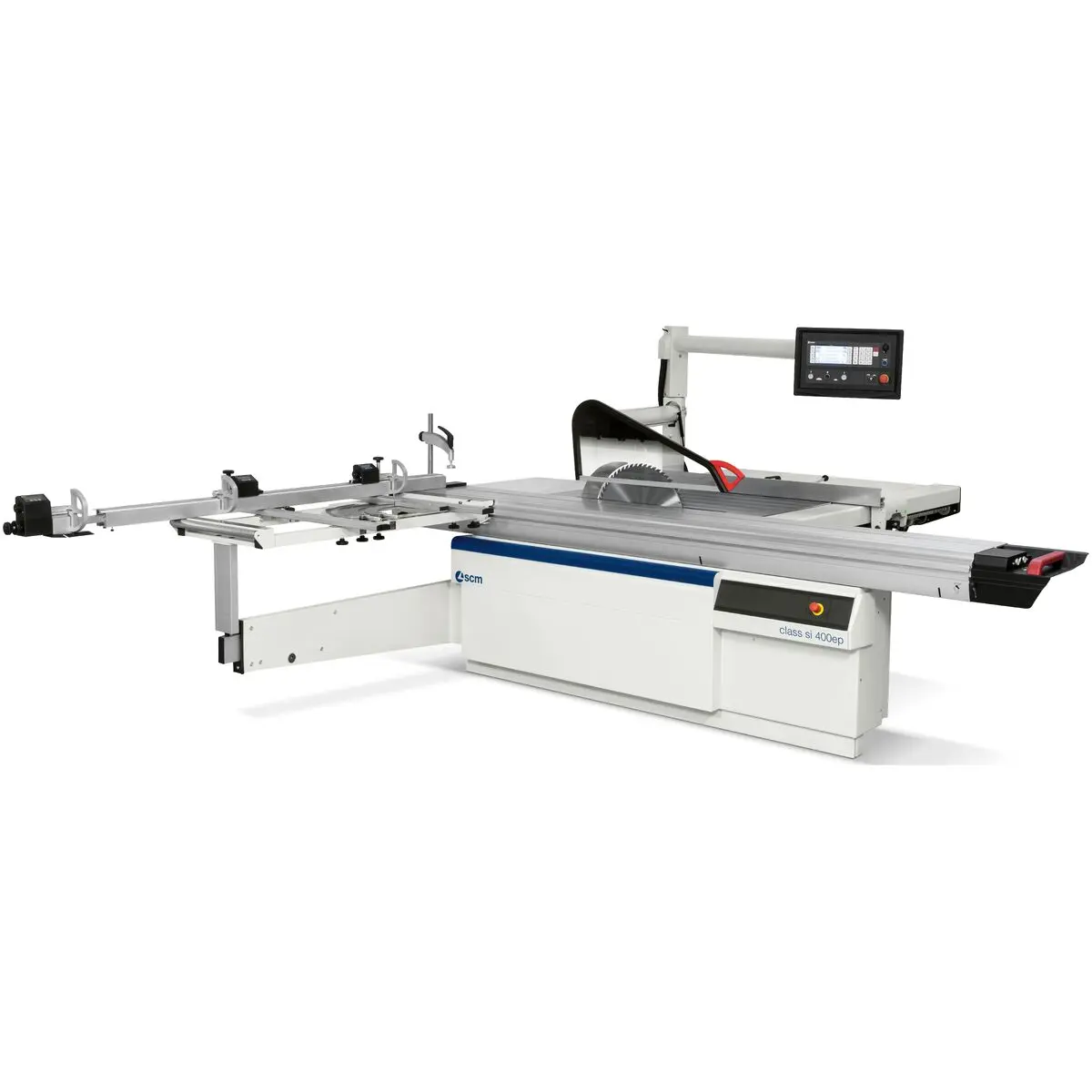

The class si 400ep circular saw represents a great example of superior technology combined with an ease of use.

The “Ready” control gives to the user the practical advantage for automatic control of the main positions. The programming of the work becomes simple and effective with the electronic control with a 4” LCD dispaly. The working mode can be manual, semi-automatic and automatic with a memory capacity of up to 99 programs. The tool data setting has automatic height adjustment. This control panel includes a calculator and hour counter.

*Photos may include optional equipment. Please verify availability and compatibility under Product Details and Specs.

Learn more

SpecificationsDesign features

Specifications

MACHINE CONFIGURATION

(Options and accessories included with this machine)

  • Expandable scoring blade
  • Squaring fence with no. 3 LCD readouts for stops position
  • Squaring frame with CompeX device
  • 2-axis scoring unit with automatic adjustment
  • Motor 9 kW Hz50 (11 kW Hz60)
TECHNICAL FEATURES
Blades tilting 90° ÷ 45°
Max. saw blade diam. with scoring blade installedmm (in)400 (15.75”)
Max. saw blade projection from table at 90°/45°mm (in)140/97(5.5 / 3.81”)
Scoring blade diametermm (in)120 (4.75”)
Squaring strokemm (in)3200 (10.5’)
Cutting width on parallel fencemm (in)1500 (62.94”)
Other technical features:
Three-phase motor 11kW (15hp) 60Hz
Exhaust outlets diameter 120 (4.75”)
MINIMUM INSTALLATION REQUIREMENTS
Power absorptionA42
Voltage frequency  230V 60Hz

Design features

SCM Thundercut App for mobile devices: optimizer/sequencer even for not skilled workers

Optimal support also to larger pieces, with the sliding table 400 mm (15.75”)  wide. The slideways, with special arch-ground steel profile (SCM solution), are secured with a procedure of aluminum riveting so that to ensure an exceptional precision and smoothness

Easy: maximum reliability due to the function pushbuttons and easy-to-use with the electronic control of up to 5 axes with the 7” LCD display, 16:9 format. These features translate into immediate improvements in productivity and guarantees the capability of the full potential of the machine

Sliding carriage: maximum cut quality guaranteed over time

The carriage will never require adjustment due to its structure with arch-ground steel slideways (developped by Scm).

The new "Eye-S" control panel, with its attractive design, allows easy and intuitive machine programming, combining the 10” colour touch-screen display and the Maestro “Active S” user interface.

The saw blade lifting of the saw unit is carried out by a sturdy cast-iron structure with sliding on ground round slideways which guarantee the best accuracy. The unit tilting is carried out on cast-iron rotation sectors in a crescent shape to ensure reliability over time.

Speed and precision ensured by the motorised programmable rip fence mounted on a recirculating ball screw mechanism with sliding on linear guides.

Speed and precision ensured by the motorised programmable rip fence mounted on a recirculating ball screw mechanism with sliding on linear guides. The fence can be overturned when extra-support for very large panels is needed.
