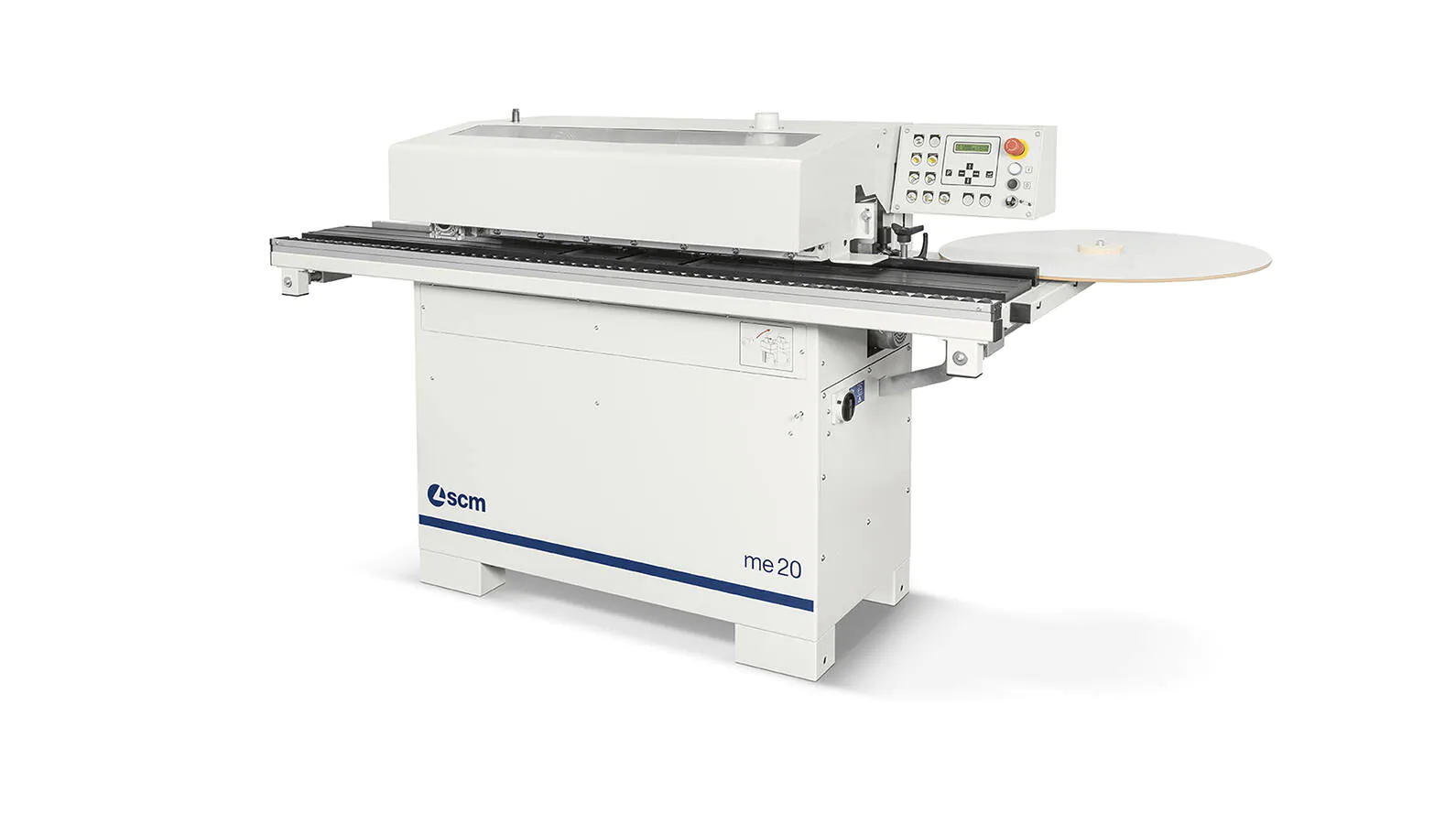

Specifications
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Single-phase version 60 Hz
| TECHNICAL FEATURES | ||
| Worktable dimensions | mm(in) | 1950 x 180 (76.75” x 7.06”) |
| Worktable height | mm(in) | 904 (35.56”) |
| Thickness of rolled edges | mm(in) | 0,4 ÷ 2 (0.19” ÷ 0.06”) |
| Max. thickness of edges in strips | mm(in) | 5 (0.19” ) |
| Min. ÷ max. working height | mm(in) | 12 ÷ 50 (0.5” ÷ 0.5”) |
| Min. panel length/width with rolled edges | mm(in) | 180/65 (7.09” / 2.56”) |
| Min. panel length (frontal end cutting only) | mm (in) | 120 (4.75”) |
| Coil holder plate | mm (in) | 730 (28.75”) |
| Feed motor power | kW | 0,25 |
| Feed speed | m/min | 6 |
| Pneumatic operating pressure | Bar (PSI) | 6,5 (95) |
| Operating temperature | °C (°F) | 190 (374) |
| Exhaust outlet diameter (base) | mm (in) | 120 (4.75”) |
| Exhaust outlet diameter (glue pot) | mm (2.56) | 60 (2.37”) |
| Gluing unit: | ||
| Motor power | kW | 0,18 |
| Glue capacity | Kg (Lbs) | ~ 0,8 (1.76) |
| Trimming unit: | ||
| Motor power | kW | 0,55 |
| Widia cutters | Ø 75 mm Z4 | |
| Cutters rotation speed | rpm | 12.000 |
| MINIMUM INSTALLATION REQUIREMENTS | ||
| Exhaust air consumption | m³/h (CFM) | 1017 (600) |
| Rated current Single-phase version | A | 11 |
| USA version - Voltages / Frequency | 230V/60Hz |
Design features
End cutting unit for the cut at 90° on the leading and trailing edges of the panel. Possibility to exclude the unit from the control panel.
Gluing unit equipped with an innovative system of self-lubrication of the glue pot which allows a more extensive use of the machine without necessity of lubrication.
Superposed trimming unit equipped with vertical copying pads for an accurate positioning of tools with reference to the cutting point.
Absolute precision offered by the end-cutting unit, with a cutter and an independent asynchronous motor
Error-free machining is ensured by the simple and intuitive control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The PLC guides the operator during maintenance, cleaning, diagnostic operations, etc.
The very best finishing of the panel edge is also guaranteed by the panel conveying track (exclusive solution), which prevents the panel having the feed affected by the typical pulses generated by the pinion of a traditional feed track and ensures a smooth and linear panel movement
