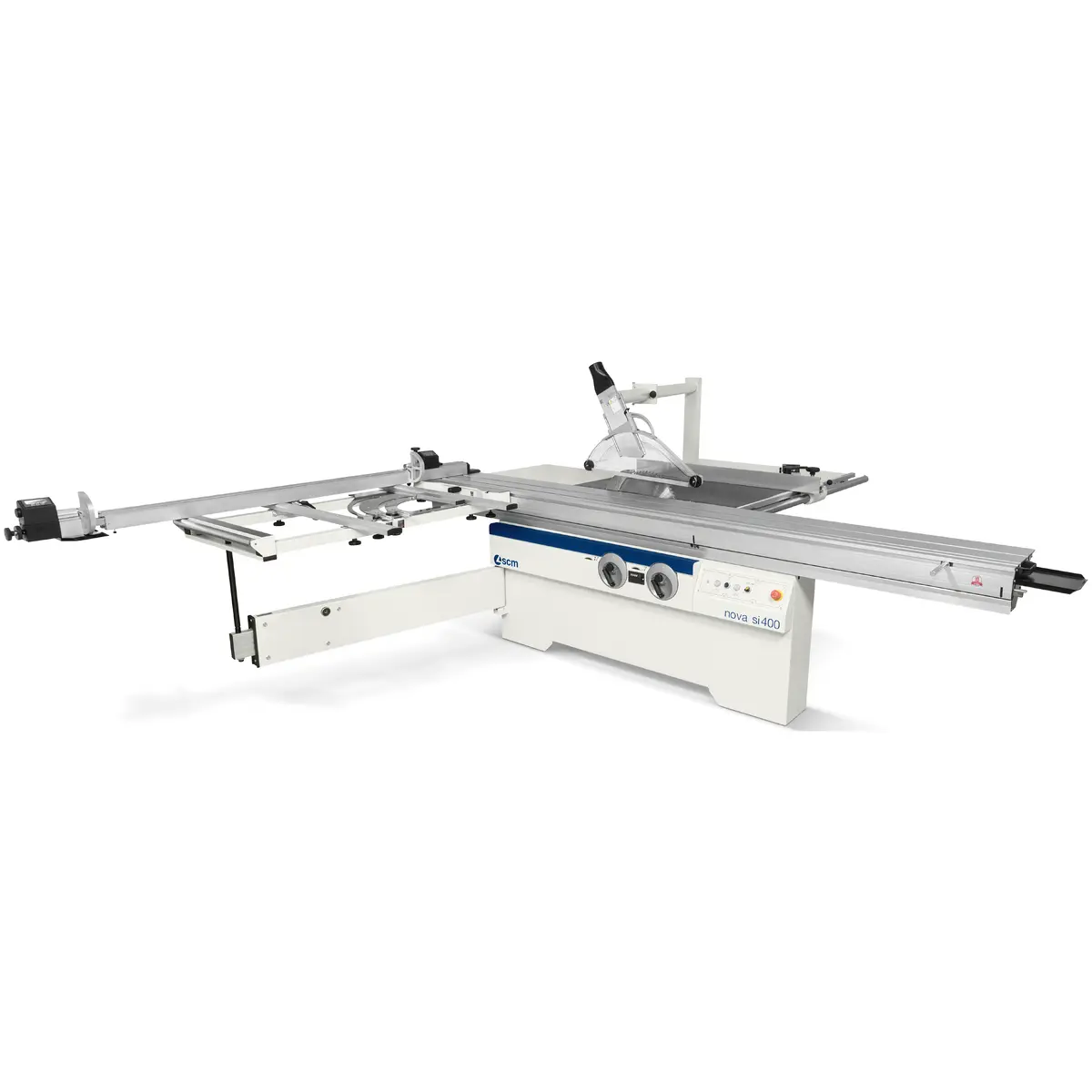

Specifications
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Expandable scoring blade
- Eccentric clamp
- Saw blade 350 mm
TECHNICAL FEATURES | ||
Blades tilting | 90° ÷ 45° | |
Max. saw blade diam. with scoring blade installed | mm | 400 (15.75”) |
Max. saw blade projection from table at 90°/45° | mm | 140/97 (5.5”/3.81”) |
Scoring blade diameter | mm | 120 (4.75”) |
Squaring stroke | mm | 3200 (125.94”) |
Cutting width on parallel fence | mm | 1270 (49.94”) |
Other technical features: | ||
Three-phase motor | 8kW (11hp) 60Hz | |
Exhaust outlets diameter | mm | 120 (4.75”) |
MINIMUM INSTALLATION REQUIREMENTS | ||
Power absorption | A | 30 |
Voltage - frequency | 230V - 60Hz |
Design features
The saw blade lifting of the saw unit is carried out by a sturdy cast-iron structure with sliding on ground round slideways which guarantee the best accuracy. The unit tilting is carried out on cast-iron rotation sectors in a crescent shape to ensure reliability over time
Optimal support also to larger pieces, with the sliding table 360 mm (14.19”) wide. The carriage sliding system is guaranteed for 10 years: a proof of reliability and technology without comparisons
Panel loading is easy on the large squaring frame with an idle roller at the end. The telescopic squaring fence with inclined metric scale and two reversible stops can be used to square panels measuring 3200 x 3200 mm (125.94” x 125.94”) and for miter cuts at up to 45° on both sides of the frame
SCM Thundercut App for mobile devices: optimizer/sequencer even for not skilled workers
All the handwheels are on the machine front: always user friendly and precise. The dedicated gears box (SCM solution), fully protected from dust, provides a smooth and direct transmission so that every minimum handwheel movement corresponds to a precise blade adjustment
