Specificaions

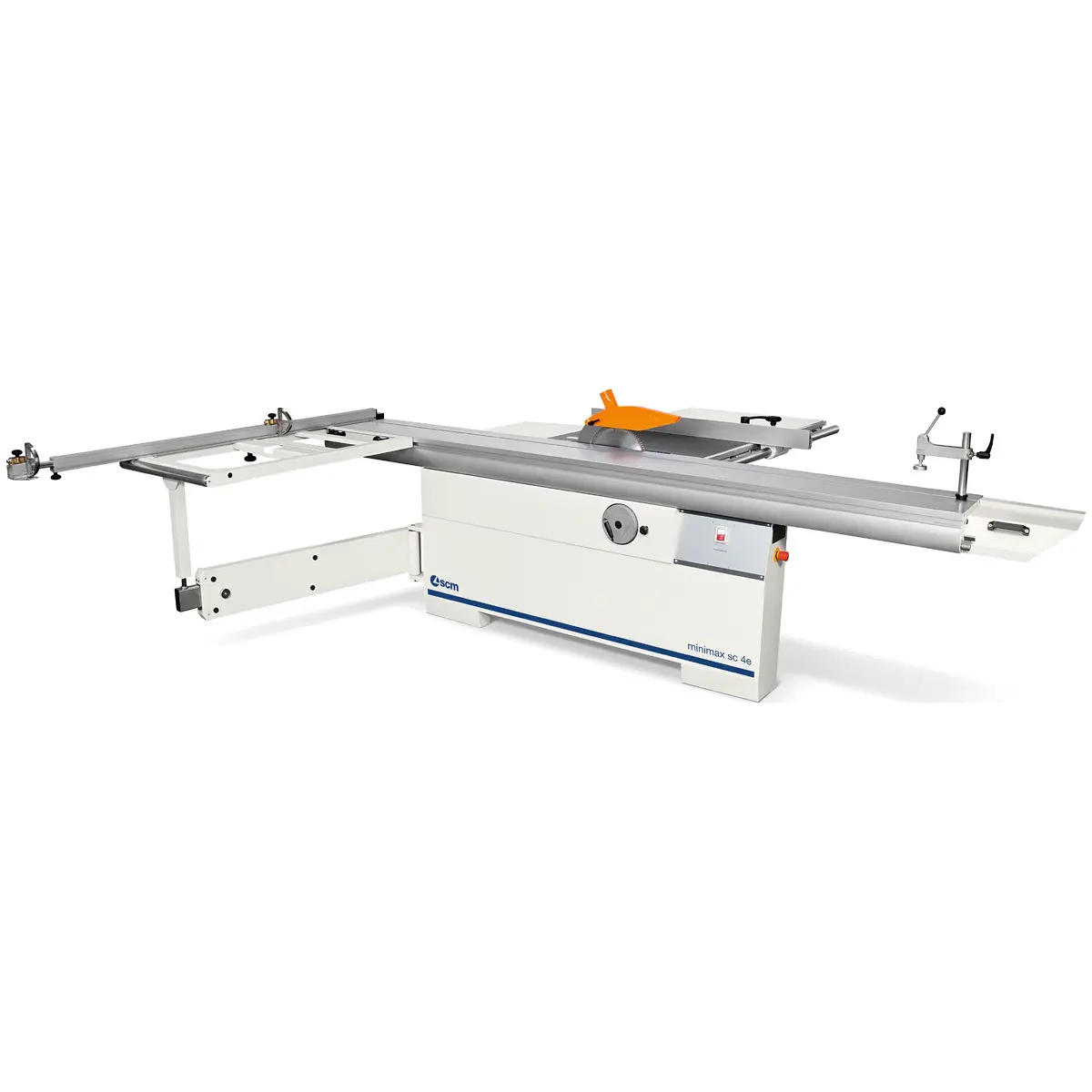

MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Version with maximum squaring stroke 2600 mm
- Belt driven scoring unit complete with blade
- "DADO SET" capability
- Angular cutting device with flip-over stops
- Additional table on the sliding table
- Cutting width with parallel fence 1270 mm
- Numerical radout for the visualisation of the saw unit tilting
- Single-phase motor 3,6kW (4,8hp) 60Hz
- Lama sega 300mm
TECHNICAL FEATURES | ||
Cast iron worktable dimensions | mm(in) | 840 x 560 (33.06 x 22”) |
Blade tilting | mm(in) | 90° ÷ 45° |
Max. blade diameter with scoring blade installed | mm(in) | 315 (12.37”) |
Max. saw blade projection from table at 90°/45° | mm(in) | 100/71 3.94/2.81”) |
Max. squaring stroke | mm(in) | 2600 (102.37”) |
Cutting width on parallel fence | mm(in) | 1270 (49.94”) |
Other technical features: | ||
Single-phase motor | mm(in) | 3,6kW (4,8hp) 60Hz |
Exhaust outlets diameter | mm(in) | 120 (4.75”) |
MINIMUM INSTALLATION REQUIREMENTS | ||
Section of electrical cable | mm2(in2) | 6 (0.25”) |
Power absorption | A | 20 |
Voltage - frequency | 230V - 60Hz |
Design features
Optimal support also to larger pieces, with the sliding table 360 mm wide. The guides are secured with a procedure of aluminum riveting, so that to ensure an exceptional precision and smoothness.
Incredible cutting thanks to the saw unit with a blade (not included) that has a maximum diameter of 315 mm with the scoring blade installed.
The saw unit closed loop structure is made of a heavy cast iron and is supported firmly under the table by two lateral supports in a crescent shape: these solutions give strength and rigidity, guaranteeing perfect cutting results.
Panel loading is easy on the large squaring frame with an idle roller at the end. The telescopic squaring fence has two reversible stops so to have precise references on both sides of it.
SCM Thundercut App for mobile devices: optimizer/sequencer even for not skilled workers.
