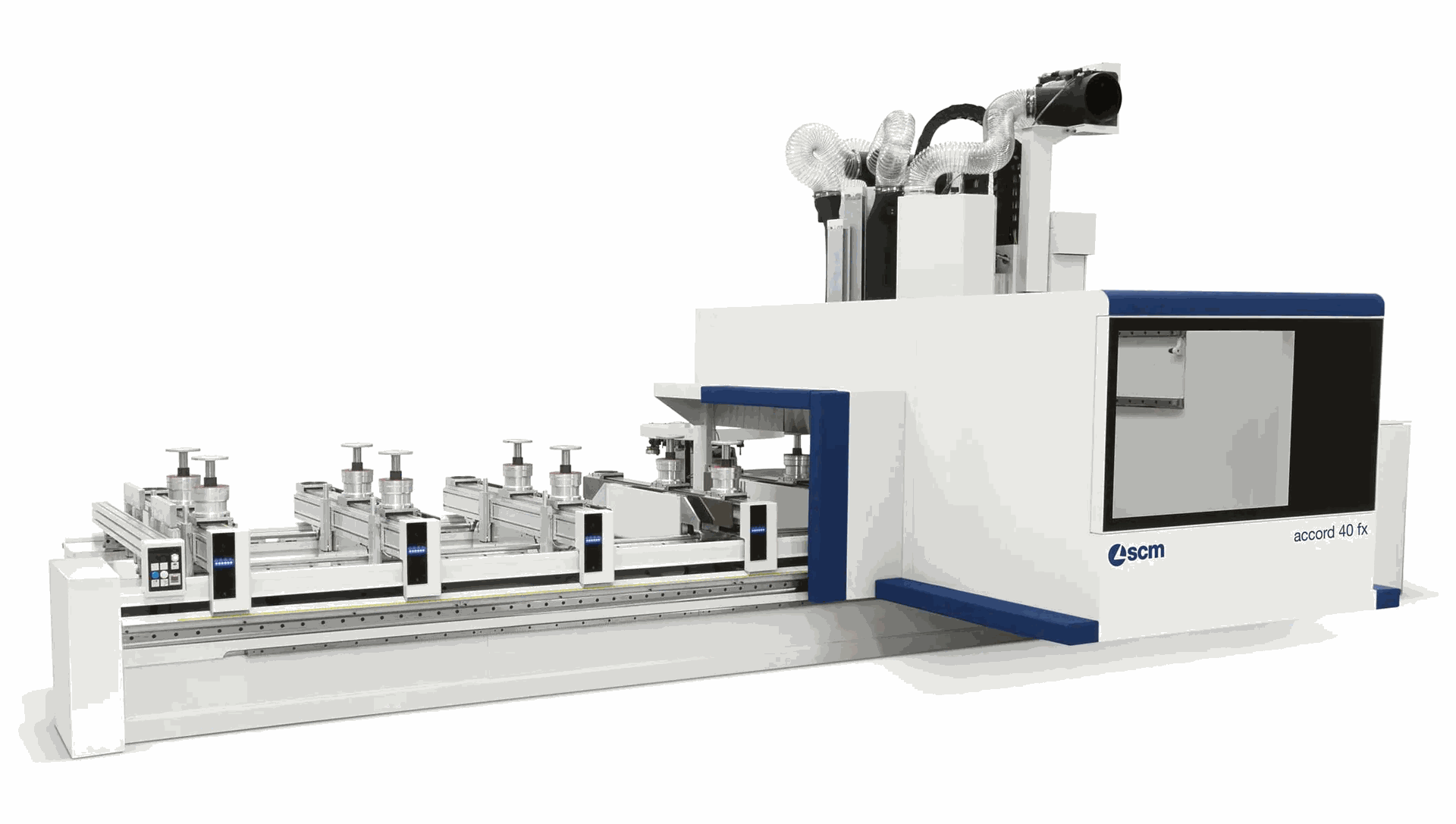

SCM accord 40 fx
CNC machining center with mobile gantry structure for the production of windows, doors, stairs, solid wood parts and for all those processes that require high level machining, while maintaining high standards in terms of precision and finish quality.
*Photos may include optional equipment.
Technical data
| accord 40 fx | ||
| Working areas | ||
| X-Y-Z axes dimensions | mm | 3680x1680x350 5020x1680x350 6360x1680x350 3680x1905x350 5020x1905x350 6360x1905x350 |
| Axes | ||
| X-Y-Z axes max. speed | m/min | 90-90-30 |
| Machining head | ||
| 5 axes electrospindle motor power (max.) | kW | 17 |
| 3/4 axes electrospindle motor power (max.) | kW | 15 |
| 5 axes electrospindle rotation speed (max.) | rpm | 24000 |
| 3/4 axes electrospindle rotation speed (max.) | rpm | 24000 |
| Tool stores | ||
| Tool store on machining head | positions | 12 |
| Rear tool store | positions | 48 |
| Side tool store | positions | 12 |
| Drilling unit | ||
| Vertical and horizontal spindles (max.) | n. | 30 |
| Rotation speed (max.) | rpm | 8000 |
