SCM accord 50 fx
$10,985.00

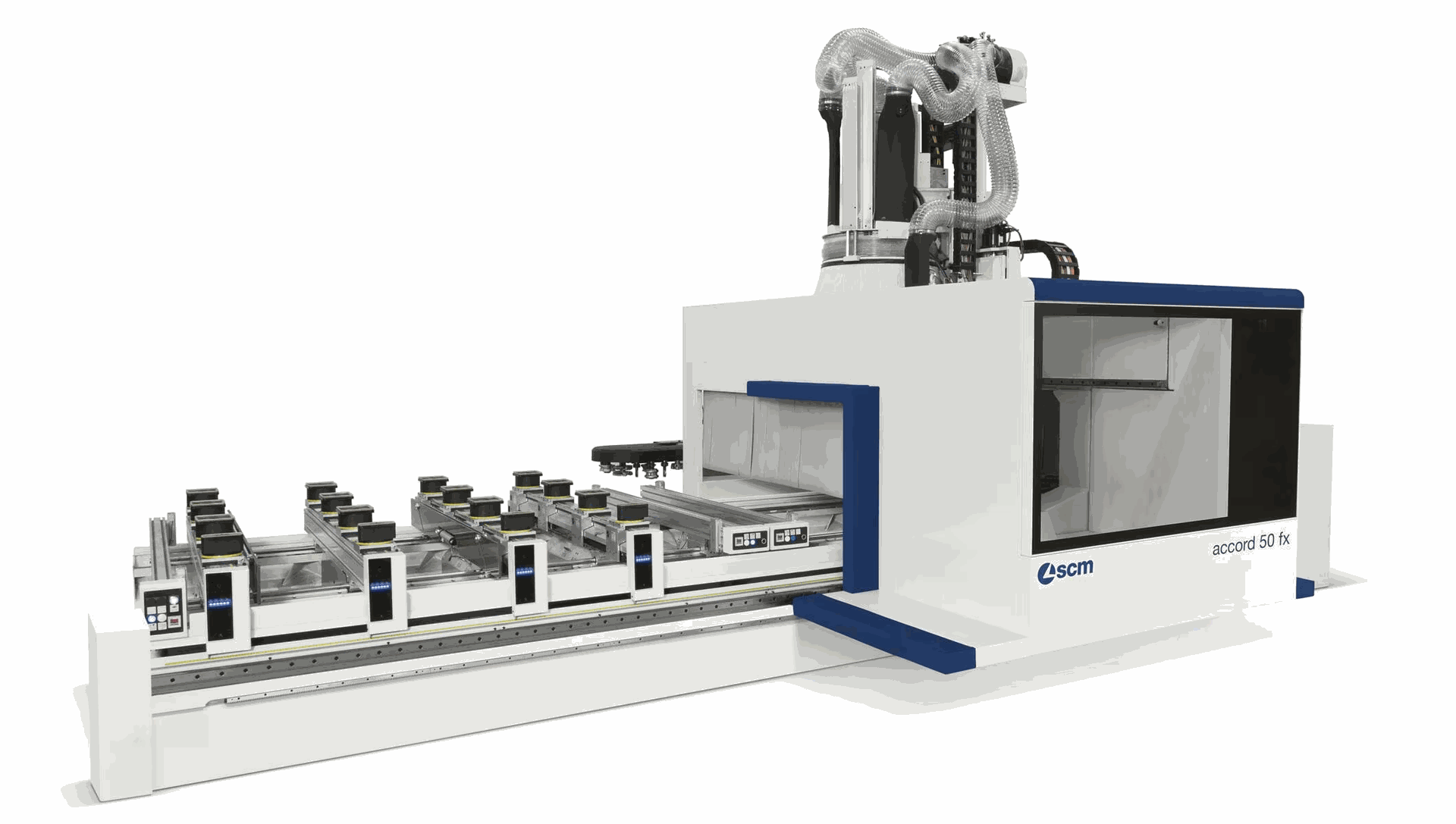

5-axis CNC machining center with mobile gantry structure, designed for manufacturing complex-shaped and large-sized objects.
It meets the needs of many sectors, from design elements in wood to special applications. *Photos may include optional equipment.
Technical data
| accord 50 fx | ||
| Working areas | ||
| X-Y-Z axes dimensions | mm | 3680x1680x500 5020x1680x500 6360x1680x500 3680x1905x500 5020x1905x500 6360x1905x500 |
| Axes | ||
| X-Y-Z axes max. speed | m/min | 95-80-30 |
| Machining head | ||
| 5 axes electrospindle motor power (max.) | kW | 17 |
| 5 axes electrospindle rotation speed (max.) | rpm | 24000 |
| Tool stores | ||
| Tool store on machining head | positions | 12 |
| Rear tool store | positions | 48 |
| Side tool store | positions | 12 |
| Drilling unit | ||
| Vertical and horizontal spindles (max.) | n. | 26 |
| Rotation speed (max.) | rpm | 8000 |
