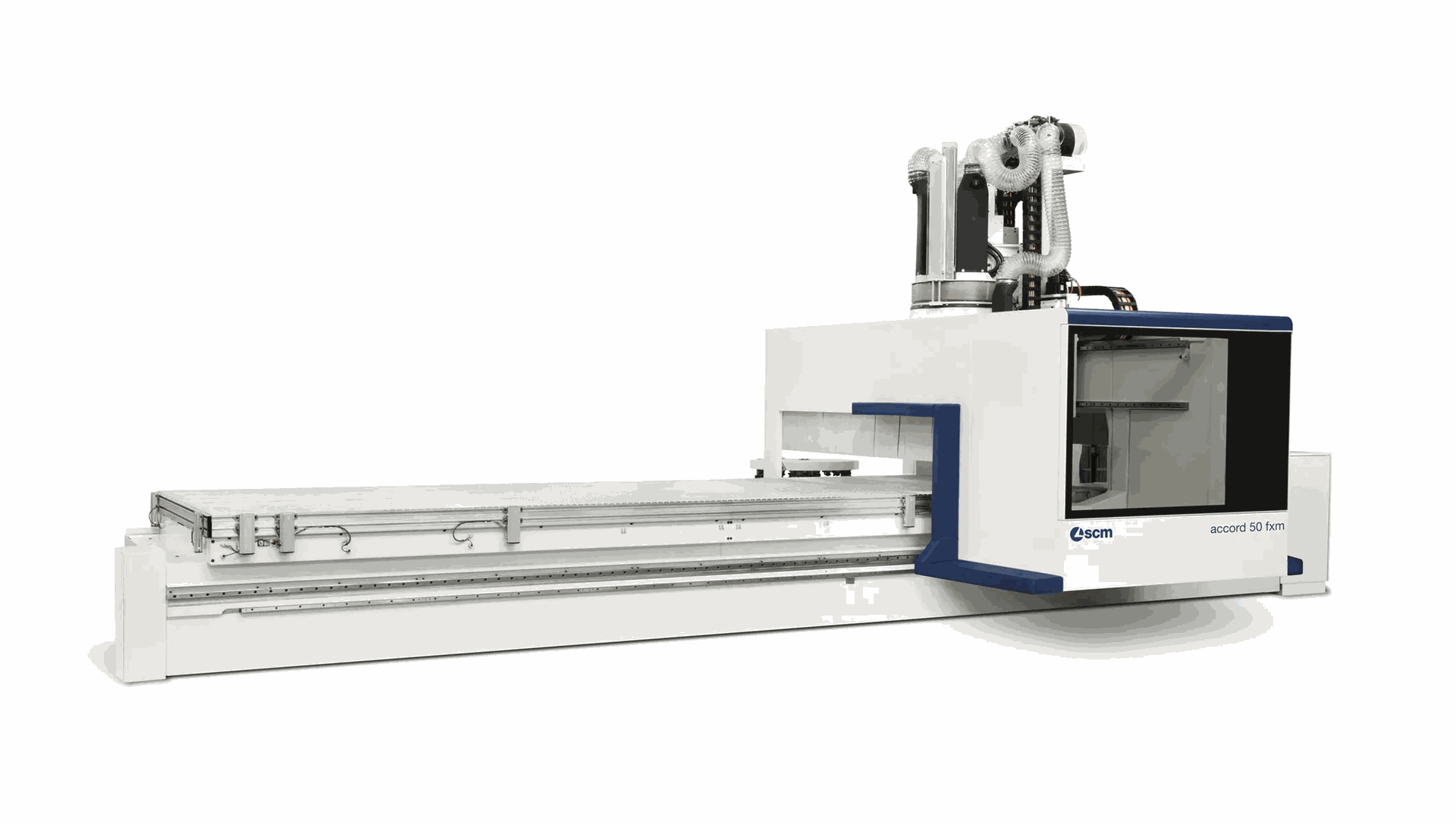

SCM accord 50 fxm
5-axis CNC machining center with mobile gantry structure, designed for manufacturing complex-shaped and large-sized objects.
It meets the needs of many sectors, from design elements in wood to special applications.
*Photos may include optional equipment.
Technical data
| accord 50 fxm | ||
| Working areas | ||
| X-Y-Z axes dimensions | mm | 3650x1600x500 4970x1600x500 6170x1600x500 3650x2120x500 4970x2120x500 6170x2120x500 |
| Axes | ||
| X-Y-Z axes max. speed | m/min | 95-80-30 |
| Machining head | ||
| 5 axes electrospindle motor power (max.) | kW | 17 |
| 5 axes electrospindle rotation speed (max.) | rpm | 24000 |
| Tool stores | ||
| Tool store on machining head | positions | 12 |
| Rear tool store | positions | 48 |
| Side tool store | positions | 12 |
| Drilling unit | ||
| Vertical and horizontal spindles (max.) | n. | 26 |
| Rotation speed (max.) | rpm | 8000 |
