SCM gabbiani vs

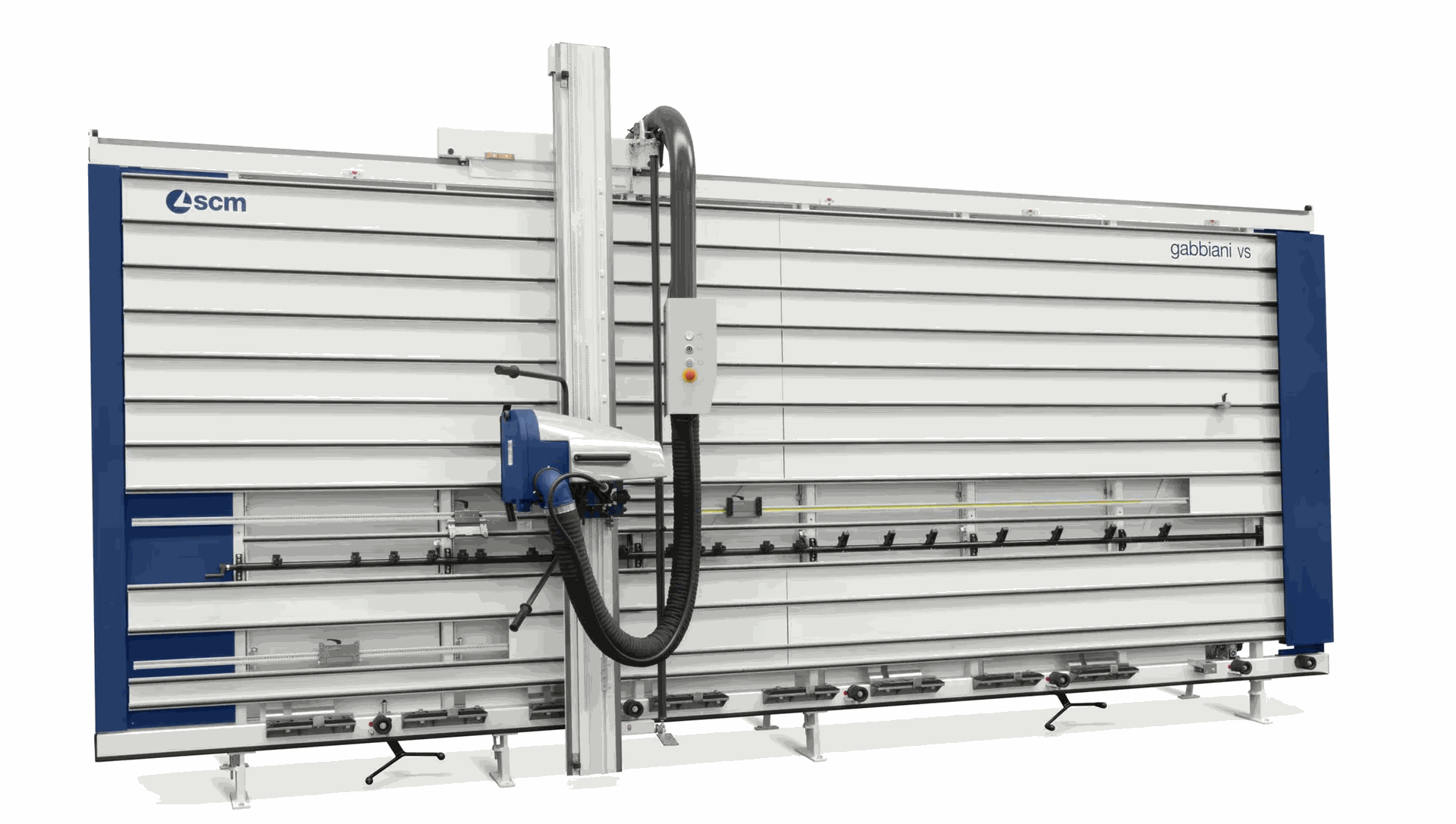

Vertical panel saw with paired scoring unit with 2 saw blades, designed to make horizontal and vertical cuts on different types of wood materials.
*Photos may include optional equipment.
Technical Data
| VS32 | VS42 | ||
Max. length of horizontal cut | mm | 3200 | 4200 |
Max. length of vertical cut | mm | 3200 | 4200 |
Max. height of vertical cut | mm | 1900 | 2200 |
Max. height of horizontal cut | mm | 1700 | 2080 |
Max. cutting thickness | mm | 60 | 60 |
Motor power | kW | 3.7 | 3.7 |
Blade diameter | mm | 250 | 250 |
Rotating speed | rpm | 5300 | 5300 |
Mechanical positioners for horizontal cuts | 4 | 4 | |
Stops for vertical cuts | 1 | 1 |
