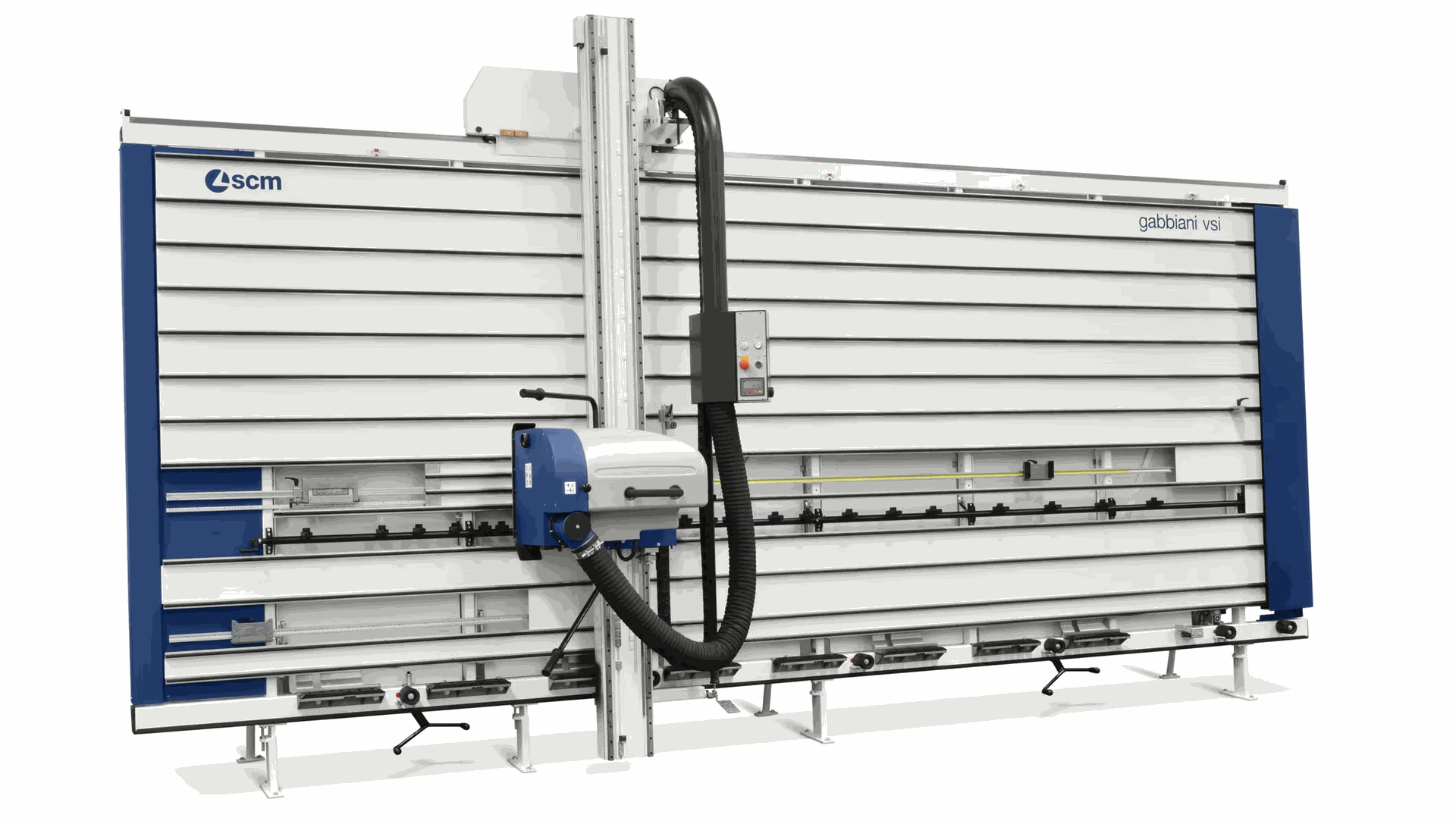

SCM gabbiani vsi

Vertical panel saw with independent motors for main blade and scorer with mechanical plunging designed to make horizontal and vertical cuts on different types of wood materials.

*Photos may include optional equipment.

Technical data

 VSI32VSI42
Max. length of horizontal cut32004200
Max. length of vertical cut32004200
Max. height of vertical cut19002800
Max. height of horizontal cut17002080
Max. cutting thickness6060
Motor power3.73.7
Blade diameter250250
Rotating speed53005300
Mechanical positioners for horizontal cuts44
Stops for vertical cuts11
