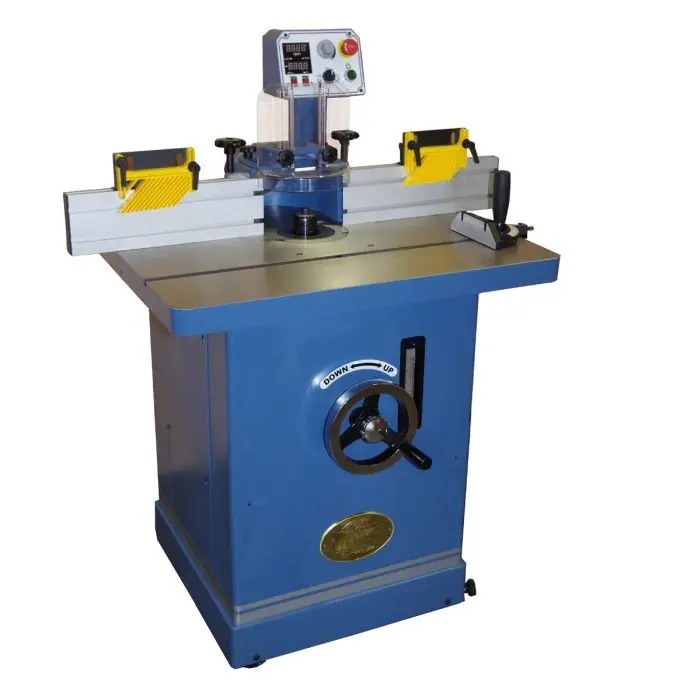

Variable Speed Shaper 3HP 1Ph
- Variable Frequency Drive provides 5,000 to 10,000 Spindle RPM.
- Elevated control panel with DRO, emergency stop, and speed control.
- DRO measures spindle RPM and spindle height.
- Large cast iron table is precision ground to provide a solid work surface.
- Table features pre-drilled and threaded holes for optional power feeder.
- Full cabinet stand includes wheels and locks.
- 1-1/4” interchangeable spindle included, other optional sizes available.
- Optional router bit collets available.
- Poly V-belt drive for smoother operation.
- Spindle reverses for more options with each set-up.
- Four inches of spindle travel allows more set-up options.
- Starting pin for irregular shapes included.
- Fence is independent and includes micro adjustment.
- Adjustable hold downs add to a safer operation.
- Extra large handwheel for easy and quick height adjustment.
- Miter gauge included.
- Powerful TEFC motor to meet your needs.
| Model Number | 10047VS |
|---|---|
| Ph | 1Ph |
| Stock No. (3HP, 1Ph) | 10047VS.001 |
| Spindle Speeds | 5,000 to 10,000 RPM |
| Spindle Diameter: | 1-1/4” |
| Verticle Spindle Travel: | 4" |
| Spindle Direction: | Reversible |
| Under Nut Capacity: | 4" with 1-1/4" Spindle |
| Table Opening: | 6-1/4” |
| Large Insert Opening: | 4-5/16” |
| Small Insert Opening: | 2-1/2” |
| Table Height | 34-3/8" |
| Table Size | 32” x 26” |
| T-Slot: | 3/4" x 3/8" |
| Fence Size (2): | 4-13/16” x 16” |
| Dust Port Diameter | 4" |
| Minimum CFM: | 800 |
| Motor 1Ph | 3HP, 220V only (8 Amp) |
| Net Weight | 396 lbs. |
| Gross Weight | 511 lbs. |
