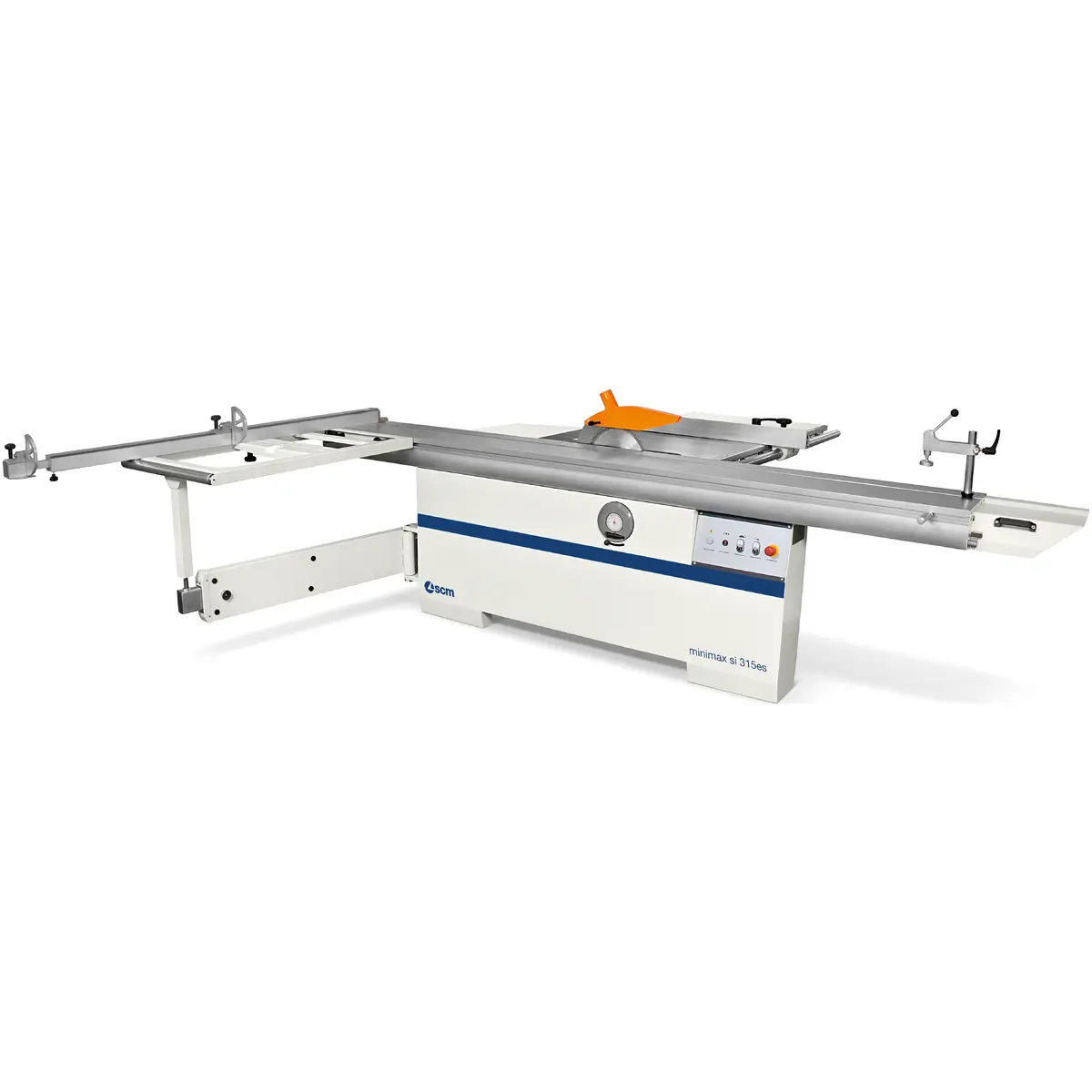

Speciffications
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Version with maximum squaring stroke 3200 mm
- Angular cutting device with flip-over stops
- "DADO SET" capability
- Additional table on the sliding table
- Single-phase motor 3,6kW (4,8hp) 60Hz
- Crate
TECHNICAL FEATURES | ||
| Cast iron saw-spindle moulder worktable dim. | mm (in) | 940 x 560 (37 x 22”) |
| Blades tilting | mm (in) | 90° ÷ 45° |
| Max. saw blade diam. with scoring blade installed | mm (in) | 315 (12.37”) |
| Max. saw blade projection from table at 90°/45° | mm (in) | 100/71 (3.94 x 2.81”) |
| Scoring blade diameter | mm (in) | 120 (4.75”) |
| Squaring stroke | mm (in) | 3200 (125.94”) |
| Cutting width on parallel fence | mm (in) | 1270 (49.94”) |
| Other technical features: | ||
| Single-phase motor | 3,6kW (4,8hp) 60Hz | |
| Exhaust outlets diameter | 120 (4.75”) | |
| MINIMUM INSTALLATION REQUIREMENTS | ||
| Section of electrical cable | [mm2] | 10 |
| Power absorption | [A] | 30 |
| Voltage - frequency | 230V - 60Hz |
Design features
The cast iron saw unit with a rigid closed loop structure can accommodate a blade of max. 315 mm (12.37”) diameter with the scoring blade mounted, ensuring perfect and easy cutting of veneer panels and thick solid wood material
The saw unit closed loop structure is made of a heavy cast iron and is supported firmly under the table by two lateral supports in a crescent shape: these solutions give strength and rigidity, guaranteeing perfect cutting results
Optimal support also to larger pieces, with the sliding table is 360 mm (14.19”) wide.The guides are secured with a procedure of aluminum riveting, so that to ensure an exceptional precision and smoothness
Panel loading is easy on the large squaring frame with an idle roller at the end. The telescopic squaring fence has two reversible stops so to have precise references on both sides of it
SCM Thundercut App for mobile devices: optimizer/sequencer even for not skilled workers
