Camaster CNC

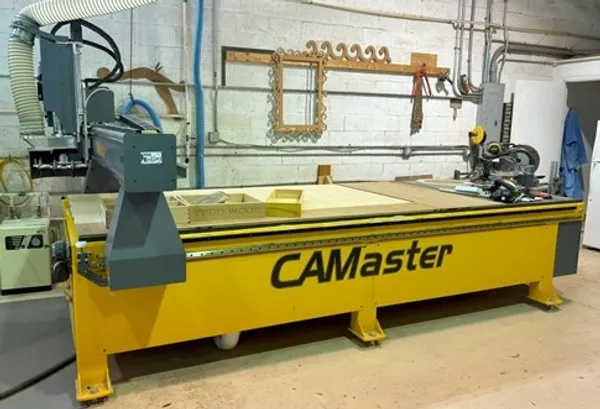

Cobra Elite CNC Router - CR-510:

- 61" x 121" Cutting Area w/ 10" Z Clearance

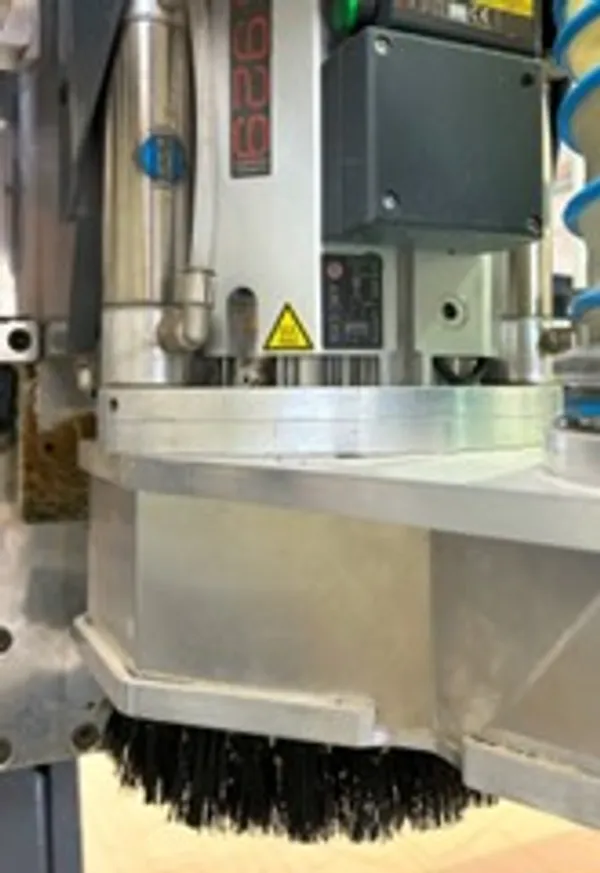

- Upgrade to a 12 HP HSD Automatic Toolchanging Spindle

- Cooling by electric fan. Ceramic bearings. Includes variable frequency drive

(inverter) and necessary hardware, wiring, and control system upgrades to

accommodate this option. Automatic Spindle ON/OFF control and speed control

from G-code

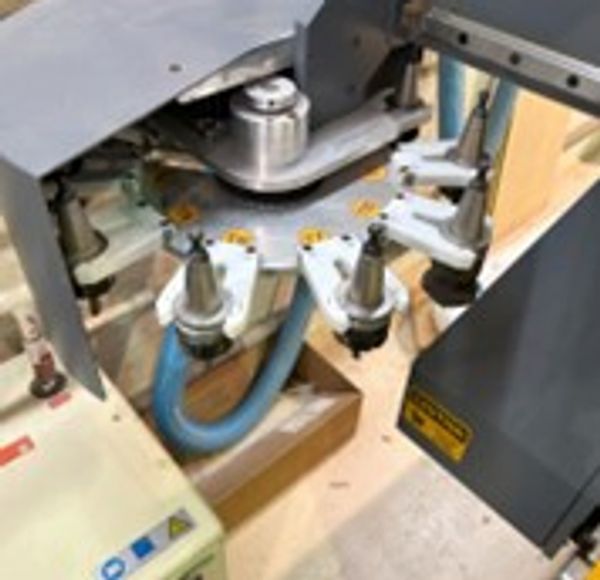

- Upgrade to a Rotary Carousel 10 Tool Holders, 10 Tool Cones and 10 Collets

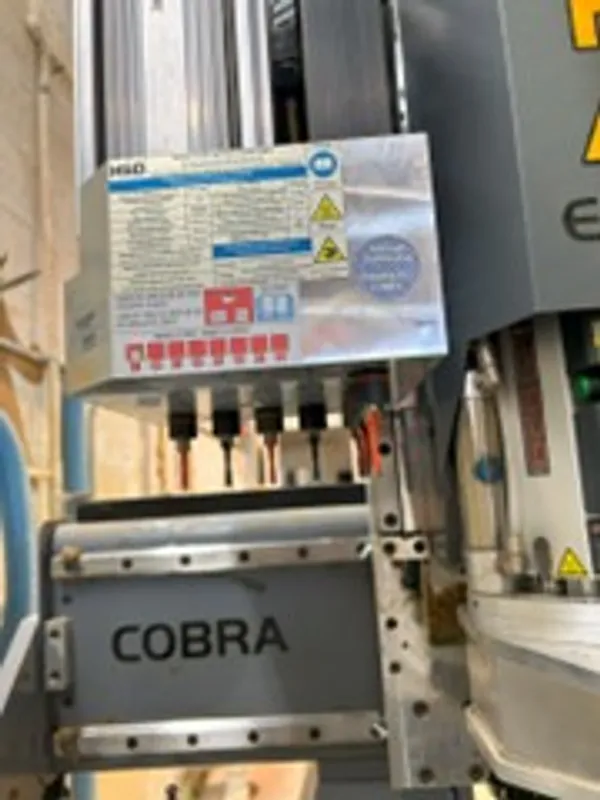

- Upgrade to an HSD 9 Position Boring Drill Bank

- Upgrade to 5' x 10' Phenolic Table Top

- Brushless AC Servo Drive System

- Dual Drive on Y Axis

- Z Axis Brake

- 25 MM Heavy Duty Precision Rails & Bearings on all Axis

- Industrial Steel Welded Frame

- All Steel Gantry

- All-Steel Gusseted Side Supports

- 10:1 High Precision Planetary Gearboxes

- Helical Rack & Pinion

- Automatic Tool Measure Switch

- Location Pins for quick and easy part placement. Each pin set consist of 3 pins.

- 2500 Inches Per Minute (IPM) Rapid Travel Speed

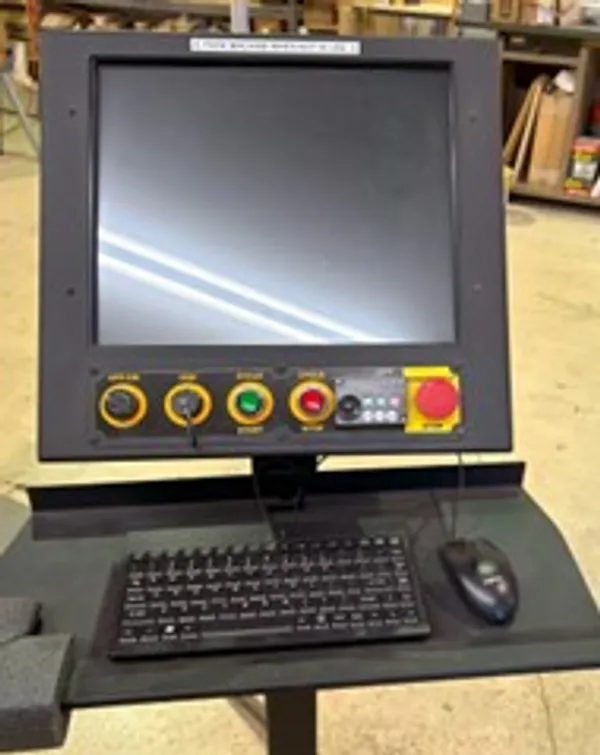

- Custom Built Monitor Stand with On/Off, Cycle Start, Cycle Stop and E-Stop Buttons and USB Port

- High Speed Visual CNC Control System (WinCNC)

- Windows 10 PRO Control Computer

- Touch Screen Monitor, Keyboard, & Mouse

- V Carve Pro Design Software

- 15 HP Regen Vacuum Pump. Pump runs off of 208-230/460 V 3 Phase Power.

- Safety Valve

- Inline Vacuum Filter

- Inlet Vacuum Filter

- Vacuum Gauge

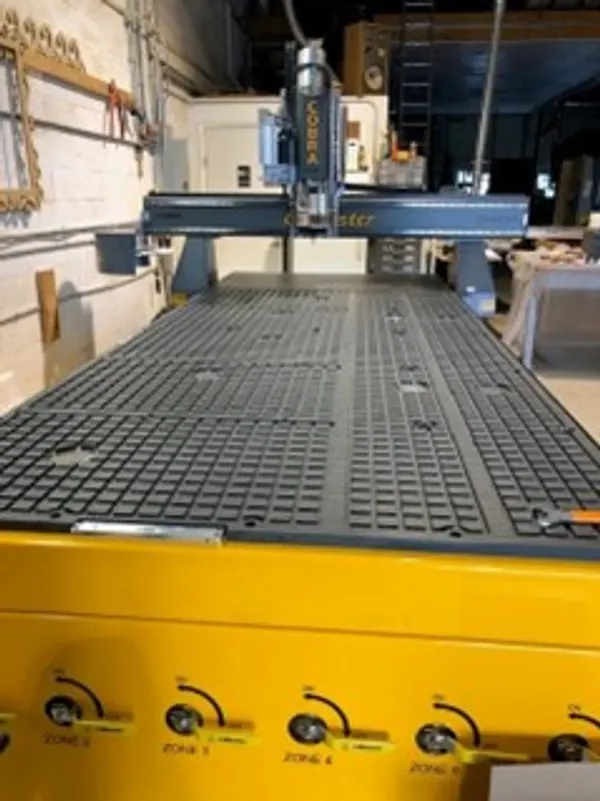

- Vacuum Grided TableTop and Plumbing w/Valves for easy connection to Vacuum Pump

- Auto Relief Valve to Engage and Disengage Vacuum On Table Controlled Via G-Code

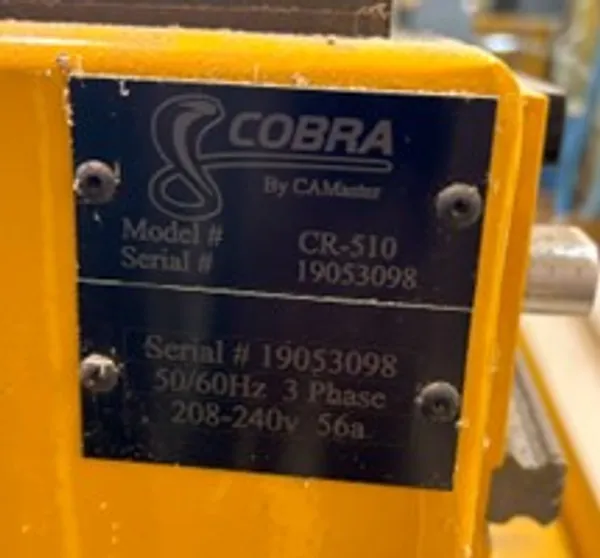

** Machine is setup to run on 208/230 Volt 3 phase power.
