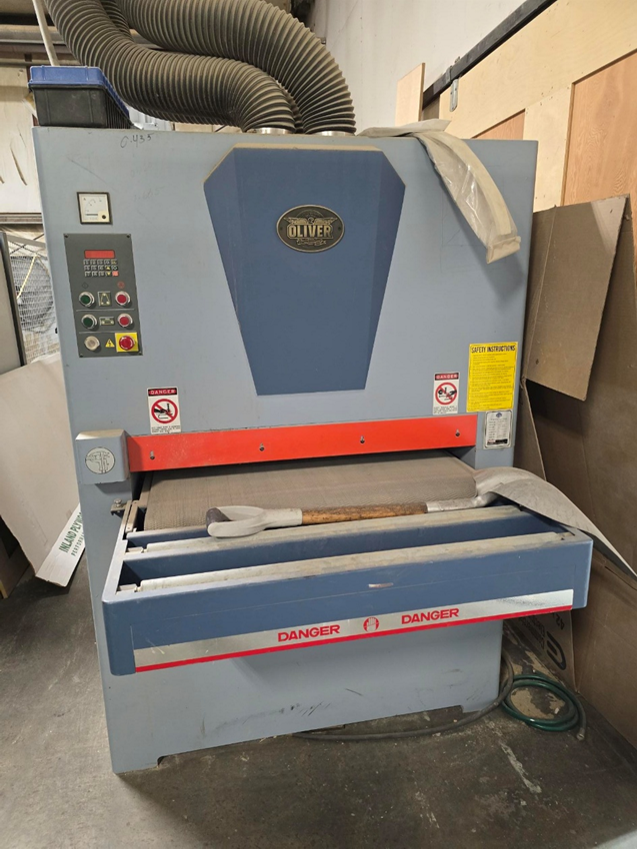

USED OLIVER 2016 - 37” Single Head Wide Belt Sand
- 75” belts give you longer life and less loading.
- Central control panel feature digital control for accurate stock height and removal.
- Heavy precision ground table gives a solid working surface.
- Power table height adjustment provides for a quick set-up.
- Variable speed feed motor allows precise adjustment for optimum results.
- Four post lift design assures accurate consistent results.
- Oscillating belt is controlled by an air sensor to prevent sanding lines.
- Platens are fully adjustable and can be removed.
- Multiple dust ports for efficient dust management.
- Independent motors run the sanding belt, feed conveyor, and table elevation for maximum power to each operation.
More Information
|
More Information |
|
|

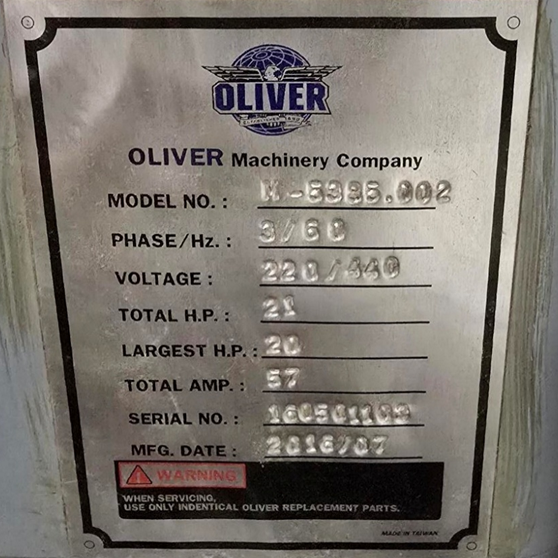

Model Number |
5385 |
|
Stock Number |
0 |
|
Stock No. (20HP, 3Ph only) |
5385.002 |
|
Maximum Stock Width |
37" |
|
Maximum Stock Thickness |
5" |
|
Minimum Stock Thickness |
1/8" |
|
Air Requirements |
80 PSI |
|
Exhaust Value Required |
1,600 CFM |
|
Dust Port Diameter |
5" (x3) |
|
Abrasive Belt Dimensions |
37”W x 75”L |
|
Main Motor |
20HP, 3Ph, 220/440V* Prewired 220V (50/25 Amp) |
|
Conveyor Motor |
1HP, 3Ph 220/440V Prewired 220V |
|
Table Raising Motor |
1/4HP |
|
Overall Dimensions |
53”L x 58”W x 85”H |
|
Net Weight |
2,090 lbs. |
|
Gross Weight |
2,425 lbs |
Machine Price $11,350.00
Shipping Costs $ TBD
Set up and Training $ TBD
Priced at $ 11,350.00 FOB Orlando, FL
Your business and relationship are very important to me as your representative at Spence Machinery and to our entire company.
If you wish to proceed with this order, please indicate so by signing in the space provided below and returning a copy of this offer as soon as possible. Prices can only be held for 30 days from the date of this offer unless otherwise stated used machines are subject to prior sale. Payment terms for machinery are 60% with order, 30% prior to shipment, and the balance will be due upon delivery. Sales tax in Florida will be due unless a Special Exemption Form is completed with the order.
Thank you for the opportunity to assist you with the production machinery requirements for your company. We look forward to doing business with you. Please don’t hesitate to contact me if you have any questions.
